Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
SC-P400 Series Disassembly 210
 Board assy (Main board / Power supply board)
 For disassembling the board assy, please refer to 4.3.1 Board Assy (Main
Board/Power Supply Board) (p86) .
 Describes the Connector Layout of the main board to the following.

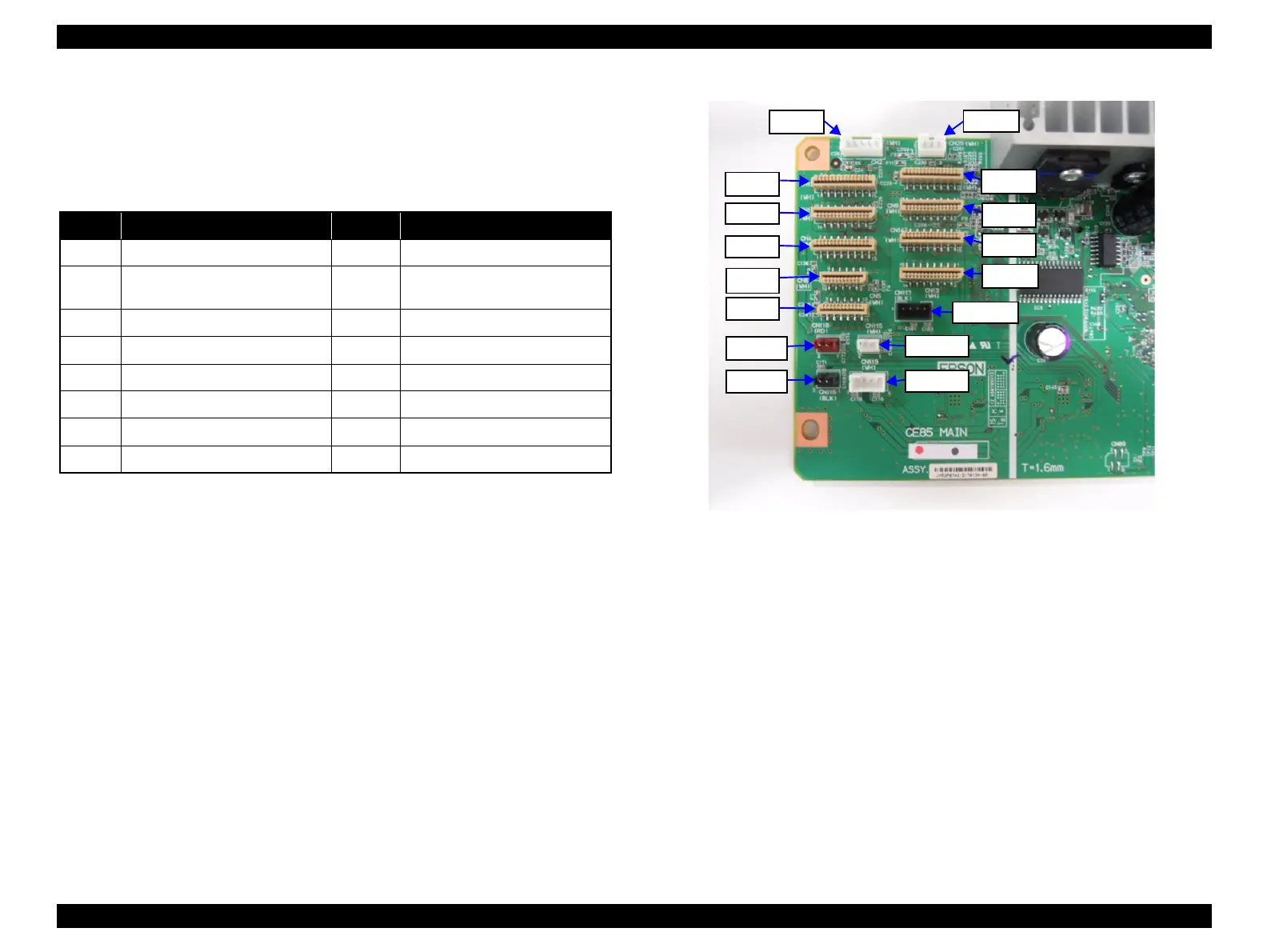

Figure 9-4. Connector layout
Table 9-6. Main Board Connector
No. Connector No. Connector
CN2 Wireless LAN Board CN14 Head FFC
CN4 Panel Board, CDR Sensor, Cover
Open Sensor
CN22
CSIC
CN5 Relay FFC (for sensor) CN25 High voltage module
CN6 LED board CN115 CR motor
CN9 CR encoder sensor, PW sensor CN116 PF motor
CN11 Head FFC CN117 Pump motor
CN12 Head FFC CN118 APG motor
CN13 Head FFC CN119 ASF motor
CN2
CN25
CN11
CN4
CN6
CN5
CN118
CN116
CN12
CN115
CN119
CN117
CN22
CN9
CN14
CN13
