Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
SC-P400 Series Disassembly 209
 Wireless LAN Board Assy
1. Remove the C.B.P. M3 x 8 screw that secures the earth plate of the wireless
LAN board assy.
2. Disconnect the wireless LAN board cable from the connector (CN2) on the
main board.
3. Remove the C.B.P. M3 x 10 screw that secures the wireless LAN board
Assy, and remove the wireless LAN board assy.

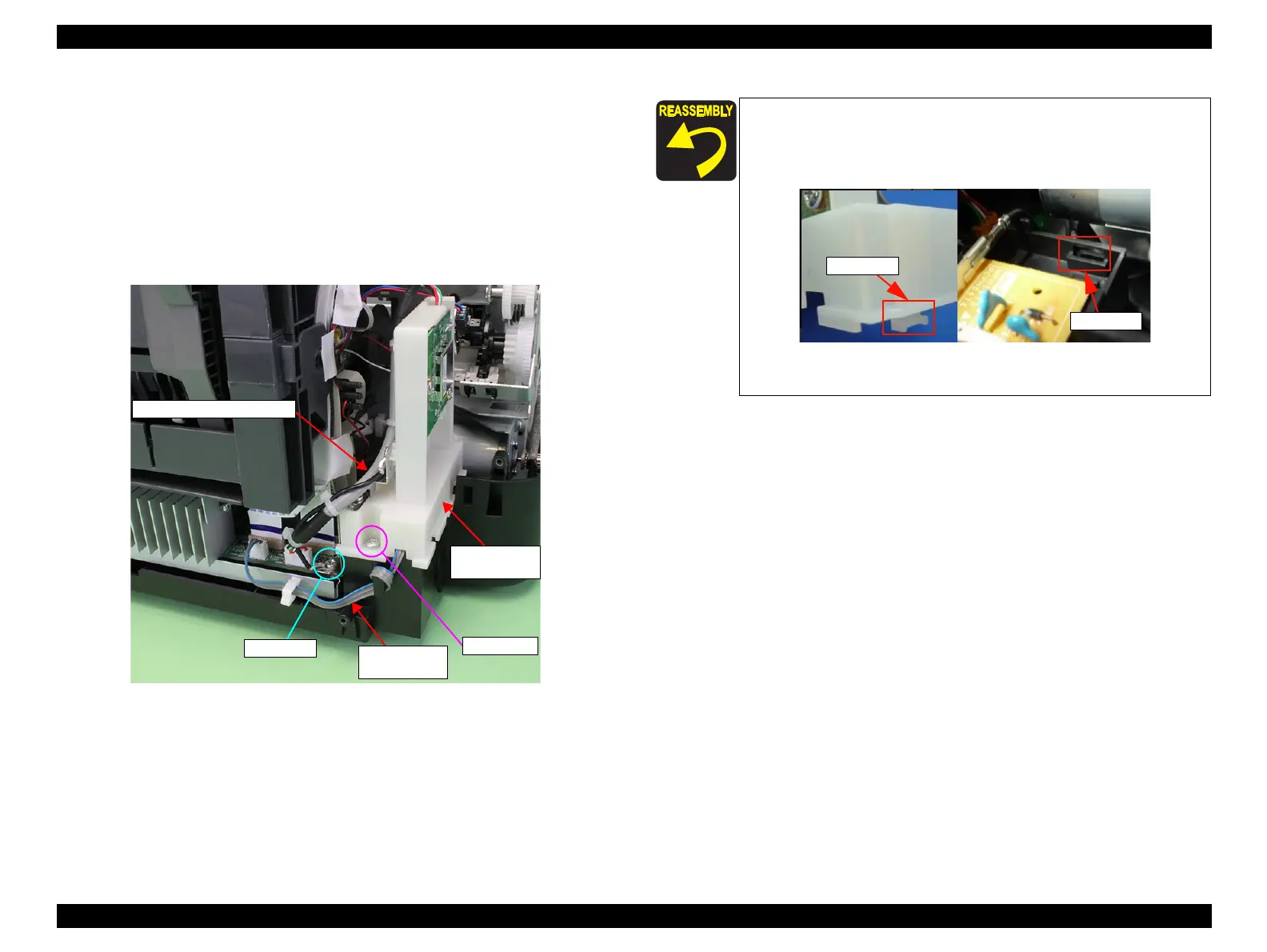

Figure 9-3. Remove the wireless LAN board assy
Wireless LAN
board assy
C.B.S 3x8
C.B.P 3x10
High voltage
module cable
Wireless LAN Board cable
 When installing the wireless LAN board assy, first insert the
hook on the wireless LAN board assy into the hole on the lower
housing, and then secure the wireless LAN board assy with the
screw.
 When routing cables, be careful not to let them caught between
the parts. (See Figure 9-3 .)
Hook
Hook hole

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
