Epson Stylus Photo R2000 Series User Manual

EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Troubleshooting Overview 39

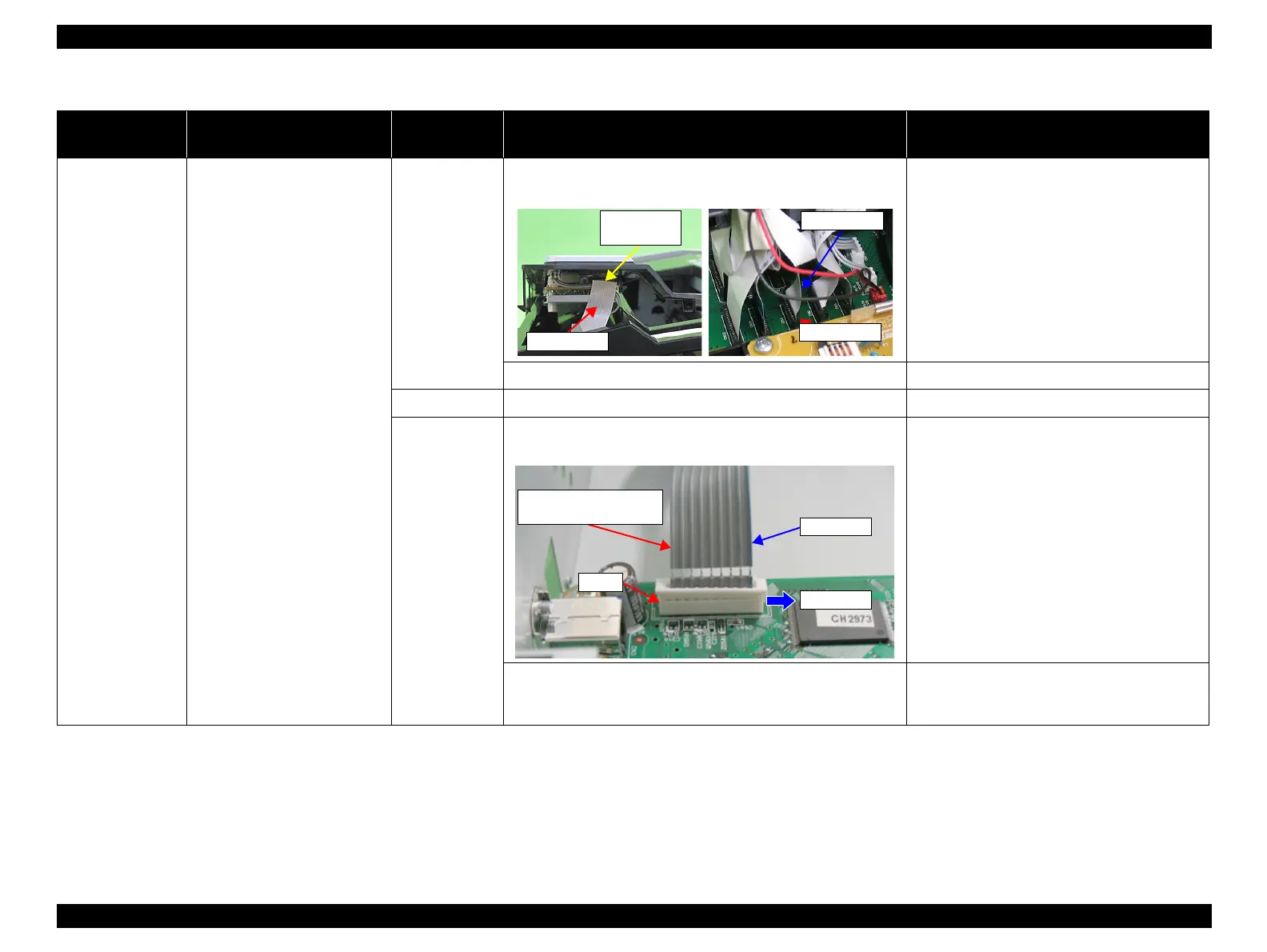

Table 3-2. Troubleshooting of Communication Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
At power-on The printer does not operate at all. Panel FFC 1. Check that the Panel FFC is connected to the Panel Board
connector and Main Board connector.
1. Connect the Panel FFC to the Panel Board and
Main Board connectors.
2. Check the Panel FFC for damages. 2. Replace the Panel FFC with a new one.
Panel Board 1. Check the Panel Board for damages. 1. Replace the Panel Board with a new one.
Power Supply
Board
1. Check that the connector cable of the Power Supply Board is
connected to the Main Board connector CN60.
1. Connect the connector cable of the Power
Supply Board to the Main Board connector
CN60.
2. Check that the blue colored pin of the Power Supply Board
connector cable is inserted into the 1 Pin of the Main Board
connector CN60 as shown in the above picture.
2. Reconnect the Power Supply Board connector
cable so that the blue colored pin is inserted
into the 1 Pin.
Panel FFC
CN4
Panel Board
connector
Panel FFC
Blue line
1Pin side
Connector cable of the
Power Supply Board
CN60
