EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Product Configuration (Name of Each Part) 23
Confidential
3.1 Product Configuration (Name of Each Part)
3.1.1 WF-C5790/WF-C5790a/WF-C5710/ET-8700

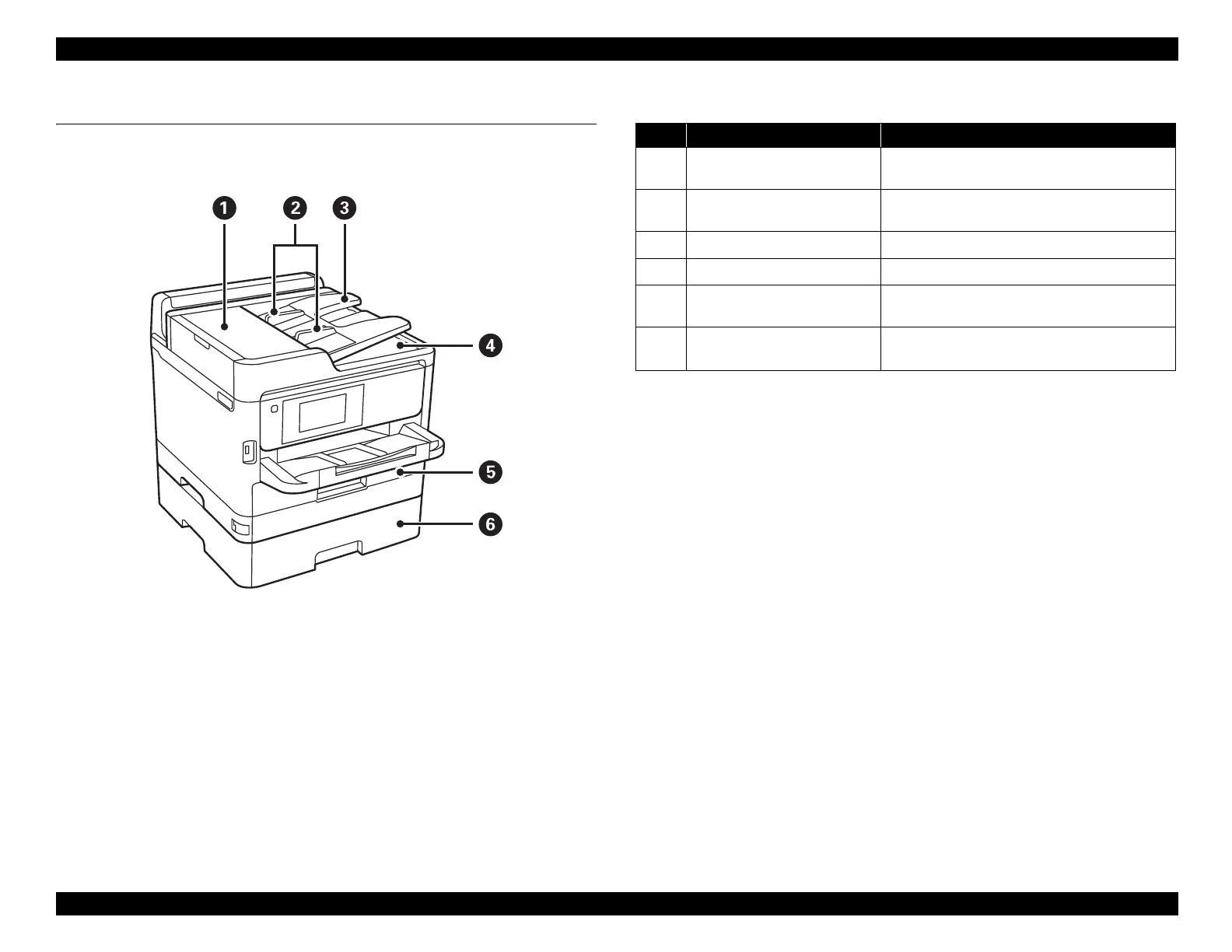

Figure 3-1. Name of Each Part
Table 3-1. Name of Each Part
No. Name Description
1
ADF (Automatic Document
Feeder) cover (F)
Open when removing jammed originals in the
ADF.
2 ADF edge guides
Feeds originals straight into the printer. Slide to
the edges of the originals.
3 ADF input tray Feeds originals automatically.
4 ADF output tray Holds originals ejected from the ADF.
5
Paper cassette 1 or Paper
cassette (C1)
Loads paper.
6 Paper cassette 2 (C2)
Optional paper cassette unit.
Loads paper.
