EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 38
Confidential
3.2.4 Printer Main Unit (Paper feed and conveyance system sensors and other sensors)

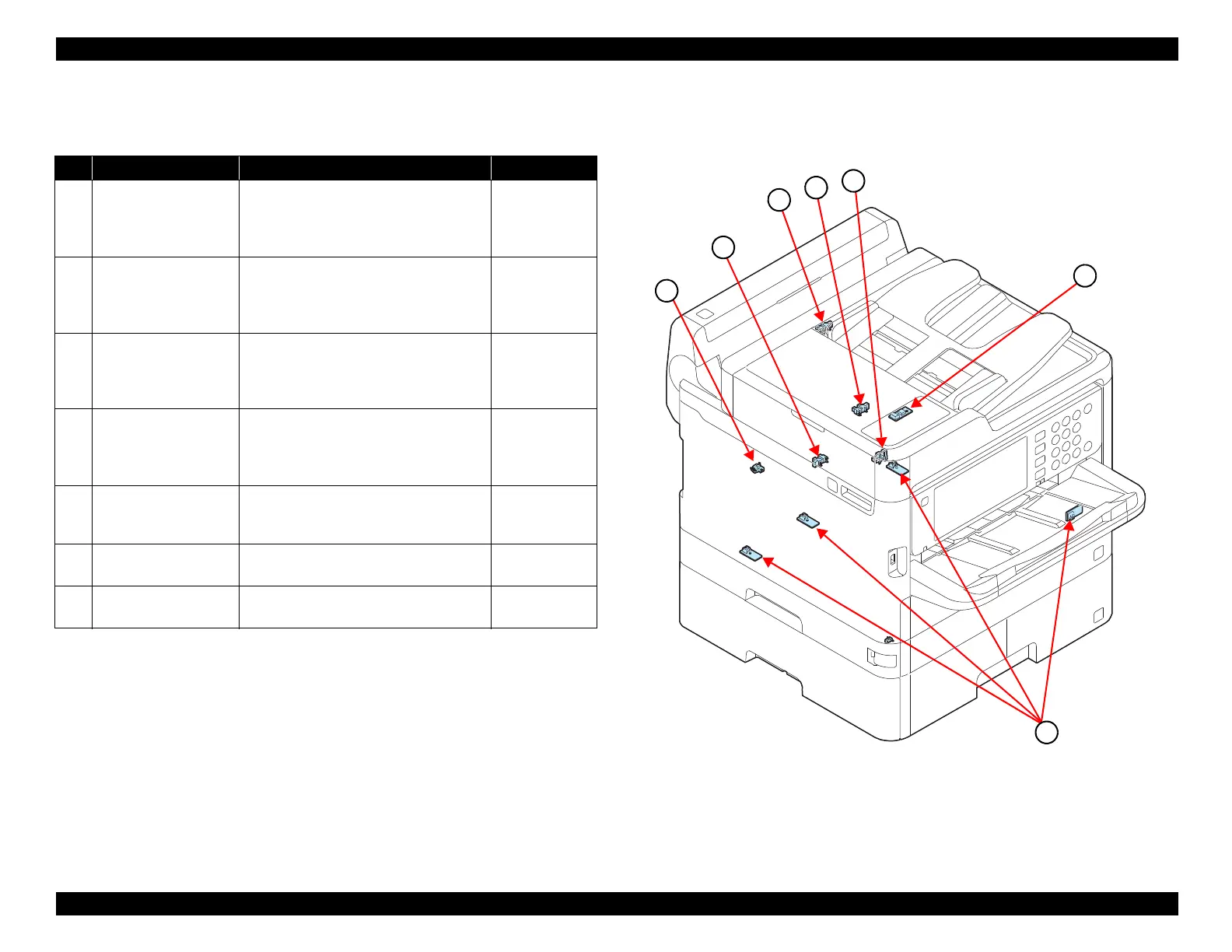

Figure 3-15. Paper feed and conveyance system sensors and other sensors
Table 3-15. Paper feed and conveyance system sensors and other sensors
No. Name Function Type
1 PE Sensor
Detects the paper leading edge and paper
trailing edge during paper feeding.
Transmissive
photo-
interrupter
(3.3VDC±5%)
2 Feed Sensor
Used for paper conveyance detection
between the pickup roller and PE sensor.
Transmissive
photo-
interrupter
(3.3VDC±5%)
3
Rear ASF Paper Detection
Sensor
Detects whether or not there is paper inside
the rear ASF unit.
Transmissive
photo-
interrupter
(3.3VDC±5%)
4
Cassette Paper Detection
Sensor
Detects whether or not there is paper inside
the paper cassette.
Transmissive
photo-
interrupter
(3.3VDC±5%)
5 Cassette Detection Sensor
Detects the insertion state of the paper
cassette.
Mechanical
contact
(3.3VDC±5%)
6
Ink Leak Sensor
Detects the ink leakage inside the ink
supply unit.
Analog sensor
(3.3VDC±5%)
7
Temperature and Humidity
Sensor
Measures temp/humidity to set the
appropriate drying time.
Analog sensor
(3.3VDC)
2
1
3
4
5
6
7

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
