EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 36
Confidential
3.2.2 Printer Main Unit (Ink detection and cover detection system sensors)

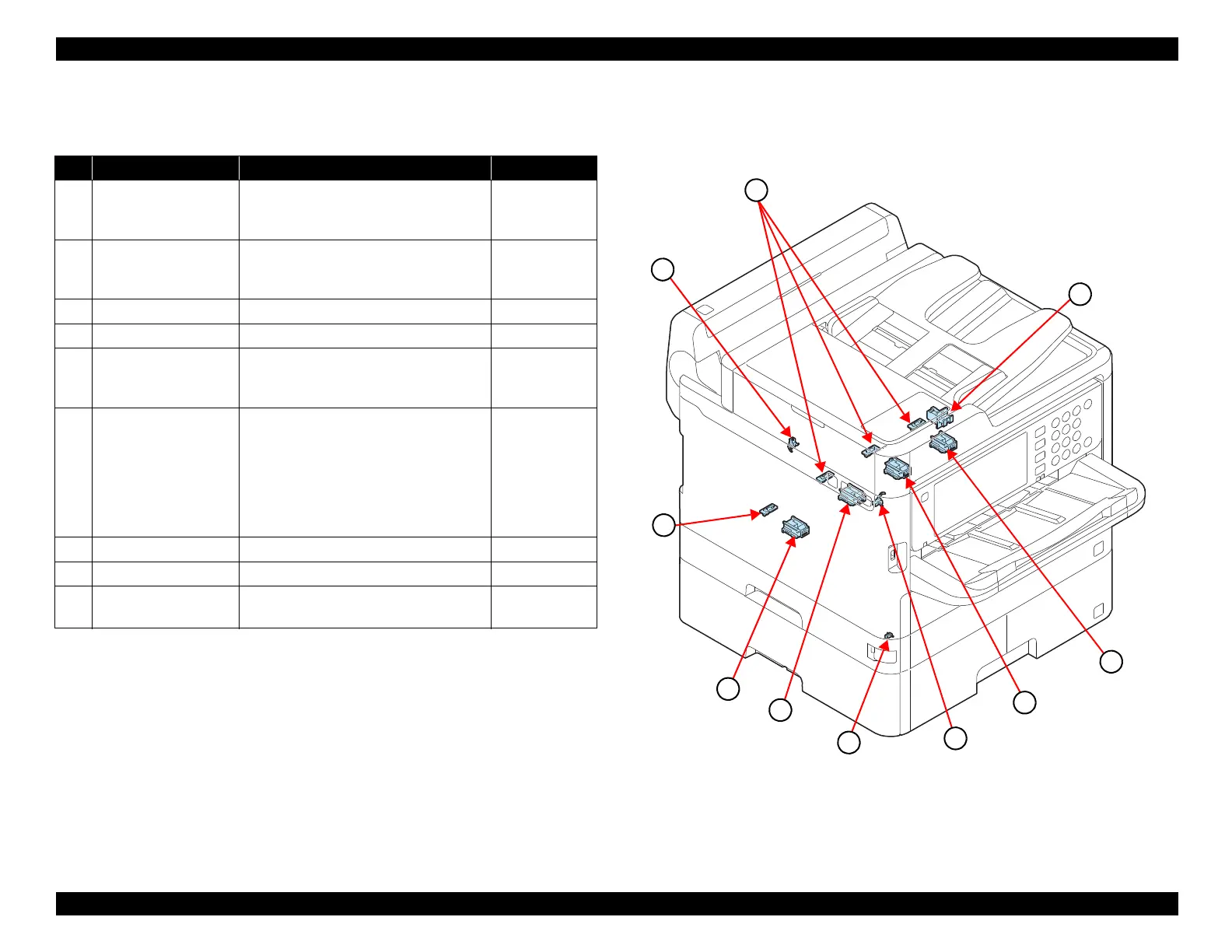

Figure 3-13. Ink detection and cover detection system sensors
Table 3-13. Ink detection and cover detection system sensors
No. Name Function Type
1 Ink End Sensor Detects the end of the ink.
Transmissive
photo-interrupter
(3.3VDC±5%)
2
Rear Unit Detection
Sensor
Detects the installation state of the Rear
Unit.
Mechanical
contact
(3.3VDC±5%)
3 Ink Pack Sensor (Bk) Used for ink pack (black) recognition. CSIC
4 Ink Pack Sensor (Y) Used for ink pack (yellow) recognition. CSIC
5
Front Cover Open
Sensor
Detects the open/closed state of the front
cover.
Mechanical
contact
(3.3VDC±5%)
6
ADF/SCN Open Sensor
(WF-C5790/WF-C5790a/
WF-C5710/ET-8700)
Printer Cover Open
Sensor (WF-C5210/
WF-C5290/WF-
C5290a)
Detects the open/closed state of the ADF/
SCN unit or the printer cover.
Mechanical
contact
(3.3VDC±5%)
7 Ink Pack Sensor (M) Used for ink pack (magenta) recognition. CSIC
8 Ink Pack Sensor (C) Used for ink pack (cyan) recognition. CSIC
9
Maintenance Box
Sensor
Used for maintenance box recognition. CSIC
3
4
7
8
9
1
5
2
1
6

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
