EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 39
Confidential
3.2.5 Options (Motor and Sensors)

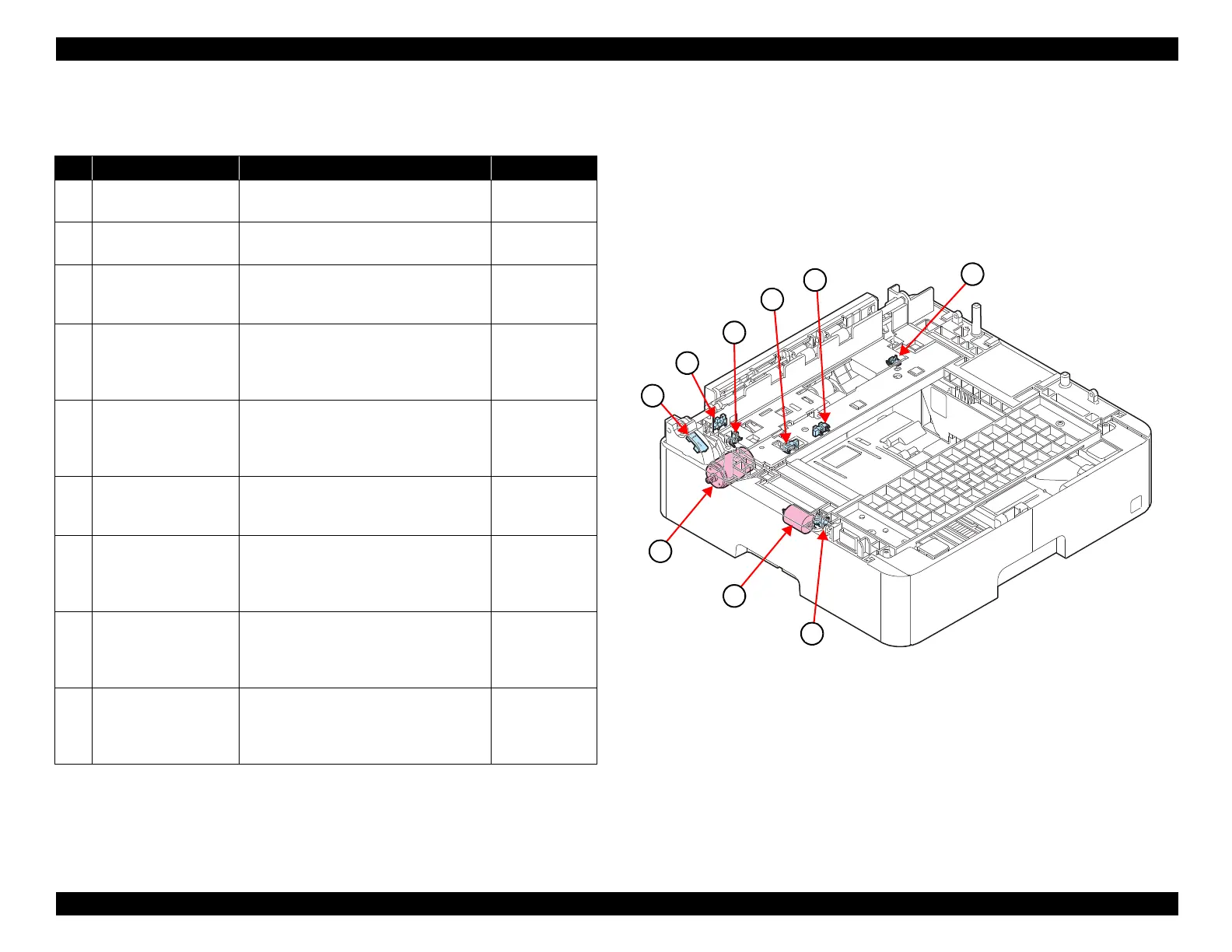

Figure 3-16. Options (Motor and Sensor)
Table 3-16. Options (Motor and Sensor)
No. Name Function Type
A
ASF Motor Used for driving the feed mechanism.
DC motor
(42VDC±5%)
B
Lift Motor
Used to raise the Paper Cassette Hop-
per.
DC motor
(42VDC±5%)
1
Cassette Detection Sensor
Detects the insertion state of the paper cas-
sette.
Mechanical
contact
(3.3VDC±5%)
2
Cassette Paper Detection
Sensor
Detects whether or not there is paper inside
the paper cassette.
Transmissive
photo-
interrupter
(3.3VDC±5%)
3
Hopper Position Sensor Detects the up/down state of the hopper.
Transmissive
photo-
interrupter
(3.3VDC±5%)
4
Jam Cover Detection
Sensor
Detects the open/closed state of the rear
cover.
Mechanical
contact
(3.3VDC±5%)
5
Feed Sensor
Used for paper conveyance detection from
the pickup roller.
Transmissive
photo-
interrupter
(3.3VDC±5%)
6
ASF Encoder Used for ASF motor operation control.
Transmissive
photo-
interrupter
(3.3VDC±5%)
7
Lift Phase Sensor
Used for detecting the phase of lift motor
driving.
Transmissive
photo-
interrupter
(3.3VDC±5%)
1
A
B
2
3
4
5
6
7

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
