7.3.2.4 Adjustment (Print Adjustment by Program)
PTS DELAY ADJUSTMENT
 Paper and feed tray
 Paper size: A4
 Paper type: Plain paper
 Paper feed tray: Paper Cassette1st
 Adjustment pattern

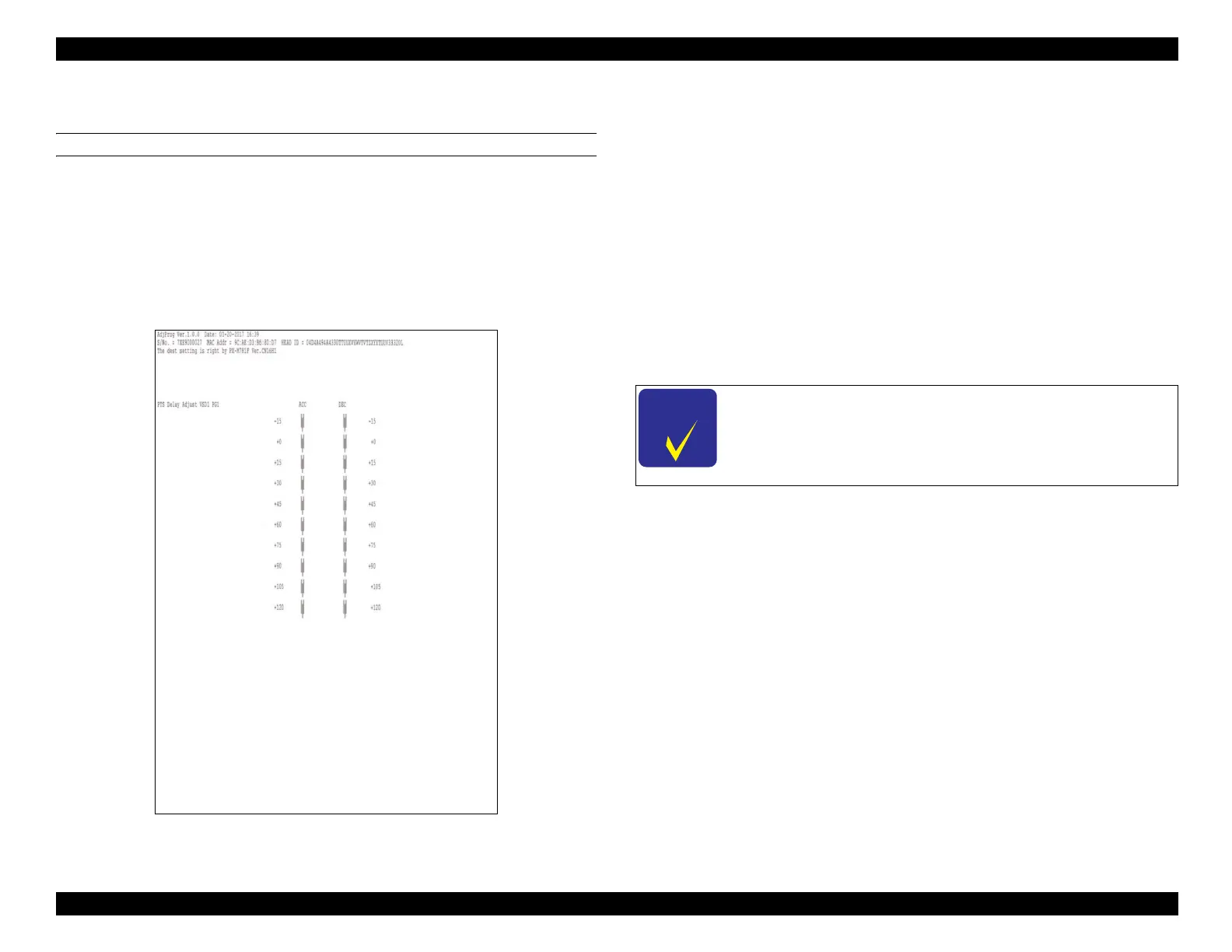

Figure 7-24. PTS delay adjustment pattern
 Judgment
Select the pattern for which there is no gap and overlapping of the left and right
patterns.
 Adjustment procedure
1. Start the Adjustment Program, and select “PTS delay adjustment”.
2. Load specified paper into the paper feed tray.
3. Press the Print button to print the adjustment pattern.
4. Check the adjustment pattern and determine the adjustment value based on the
judgment procedure.
5. Enter the adjustment value.
6. Check that an adjustment value is entered, press the Input button, and save the
adjustment value in the printer.
C H E C K
P O I N T
If there is no pattern satisfying the judgment method among the
adjustment patterns, there is a pattern satisfying the judgment
method outside the scope of pattern printing. Therefore, select the
best pattern and enter the adjustment value, following which again
print the adjustment pattern and determine the adjustment value.
