Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 41
Confidential
3.2.7 ADF (Motor and Sensor)

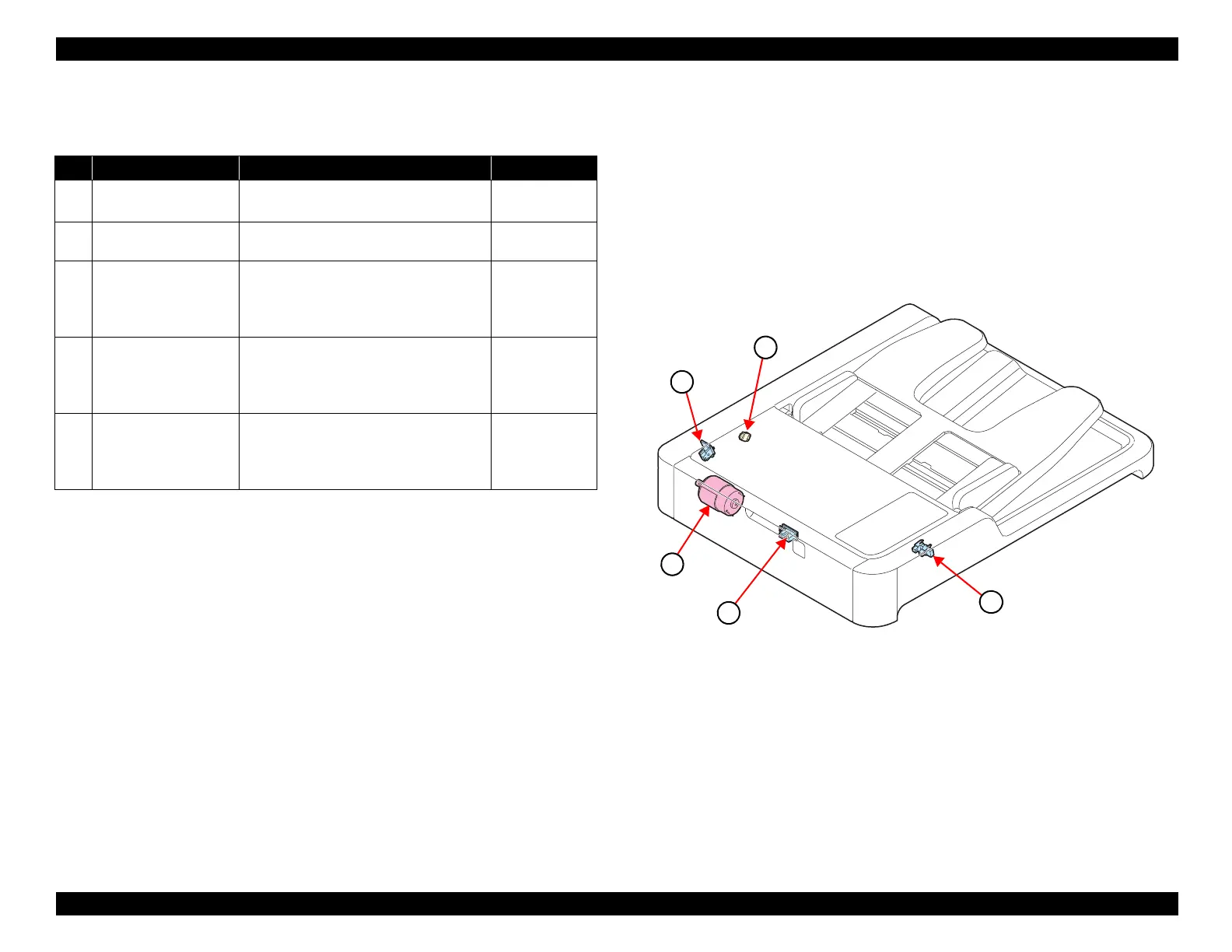

Figure 3-18. ADF (Motor and Sensor)
Table 3-18. ADF (Motor and Sensor)
No. Name Function Type
A
ADF Motor
Used for driving the document feed mecha-
nism.
DC motor
(42VDC±5%)
B
ADF Solenoid
Performs switching of the drive transmis-
sion to the pickup roller.
---
1 ADF Encoder
Used for controlling operation of the ADF
motor.
Transmissive
photo-
interrupter
(3.3VDC±5%)
2 ADF PE Sensor
Detects whether or not there is a document
in the paper feed path.
Transmissive
photo-
interrupter
(3.3VDC±5%)
3 ADF DOC Sensor
Detects whether or not a document is
placed on the ADF document support.
Transmissive
photo-
interrupter
(3.3VDC±5%)
1
2
A
B
3

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
