EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 35
Confidential
3.2.1 Printer Main Unit (Motors and solenoids)

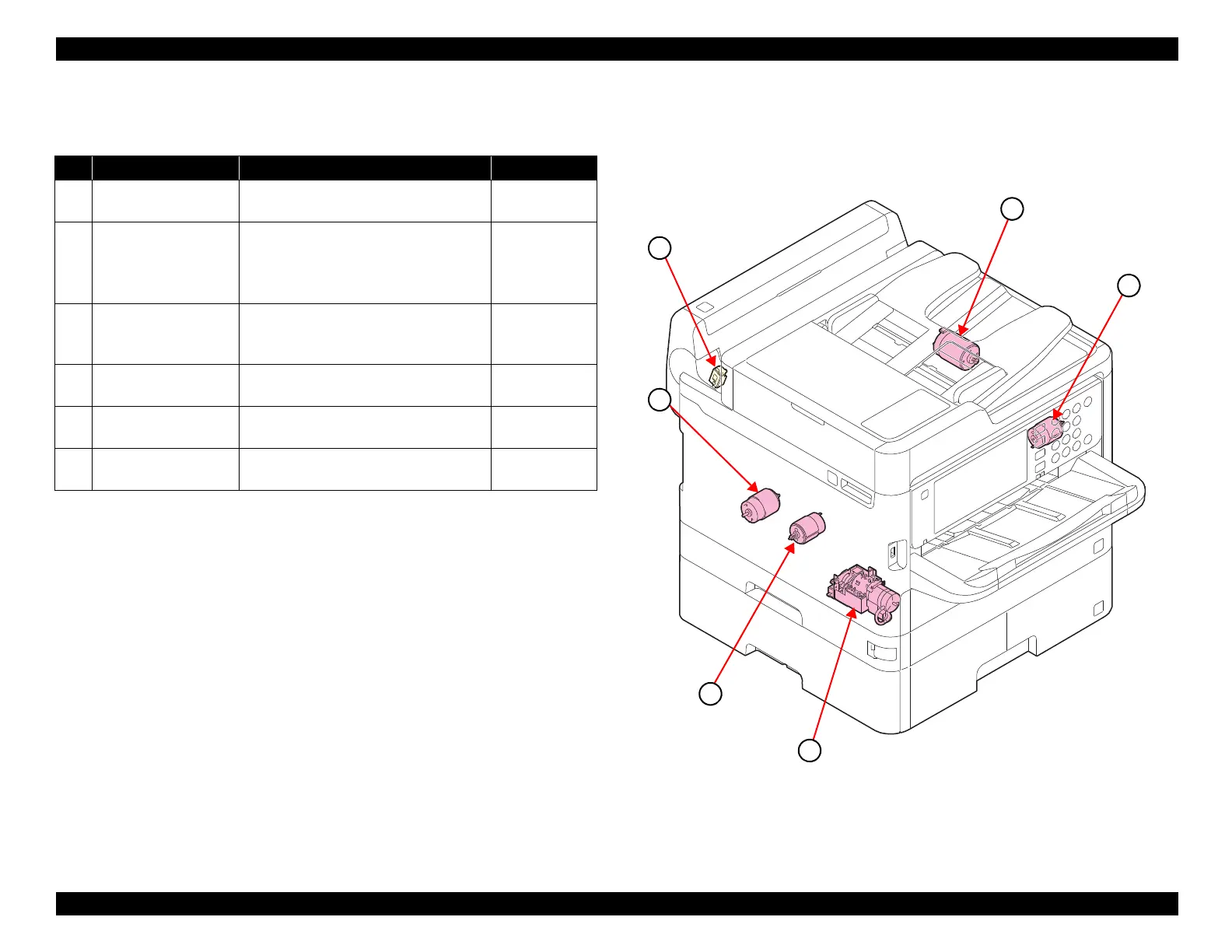

Figure 3-12. Printer Main Unit (Motors and solenoids)
Table 3-12. Motors and solenoids
No. Name Function Type
1 CR Motor Used for CR operation driving.
DC motor
(42VDC±5%)
2ASF Motor
Used for driving the feed mechanism.
 Pickup Roller
 Rear ASF Unit
 Rear Unit
DC motor
(42VDC±5%)
3PF Motor
 Used for feed and delivery roller
driving.
 Used for driving the APG lever.
DC motor
(42VDC±5%)
4 Decompression Motor
Used for supplying ink from the ink packs
to the buffer of the ink supply unit.
DC motor
(42VDC±5%)
5 I/S Motor
Used for driving the pump of Inksystem
Unit.
DC motor
(42VDC±5%)
A Rear ASF Solenoid
Performs switching of the ASF motor
drive transmission to the rear ASF unit.
---
1
3
2
5
4
A

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
