Adjustment Adjustment and Inspection Details 568
Confidential
7.3.2.3 Adjustment (Print Adjustment by Mechanical)
HEAD ANGULAR MECHA ADJUSTMENT
 Paper and feed tray
 Paper size: A4
 Paper type: Photo matte paper
 Paper feed tray: Rear ASF Unit
 Adjustment pattern

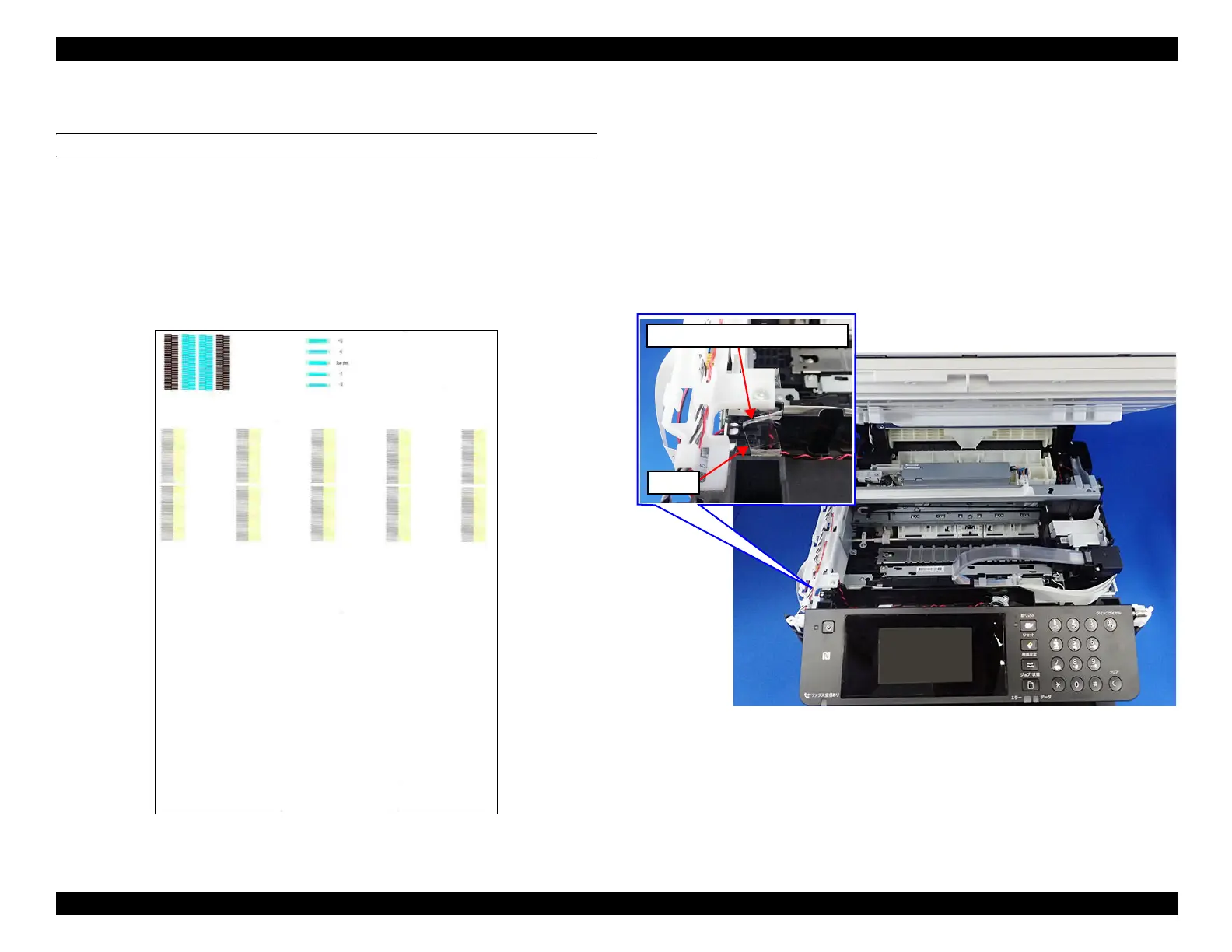

Figure 7-15. Head angular mecha adjustment pattern
 Judgment
Make adjustments so that the spacing between the pattern lines when the
adjustment value is “0” becomes equal.
 Preparation
Head angular mecha adjustment must be performed when the ADF/SCN Unit has
been opened.
Therefore, in order to set the ADF/SCN Open Sensor to the closed state, secure it
with tape.
Figure 7-16. Preparation
ADF/SCN Open Sensor
Tape
