6.2.2.3 Removing the Ink Pack

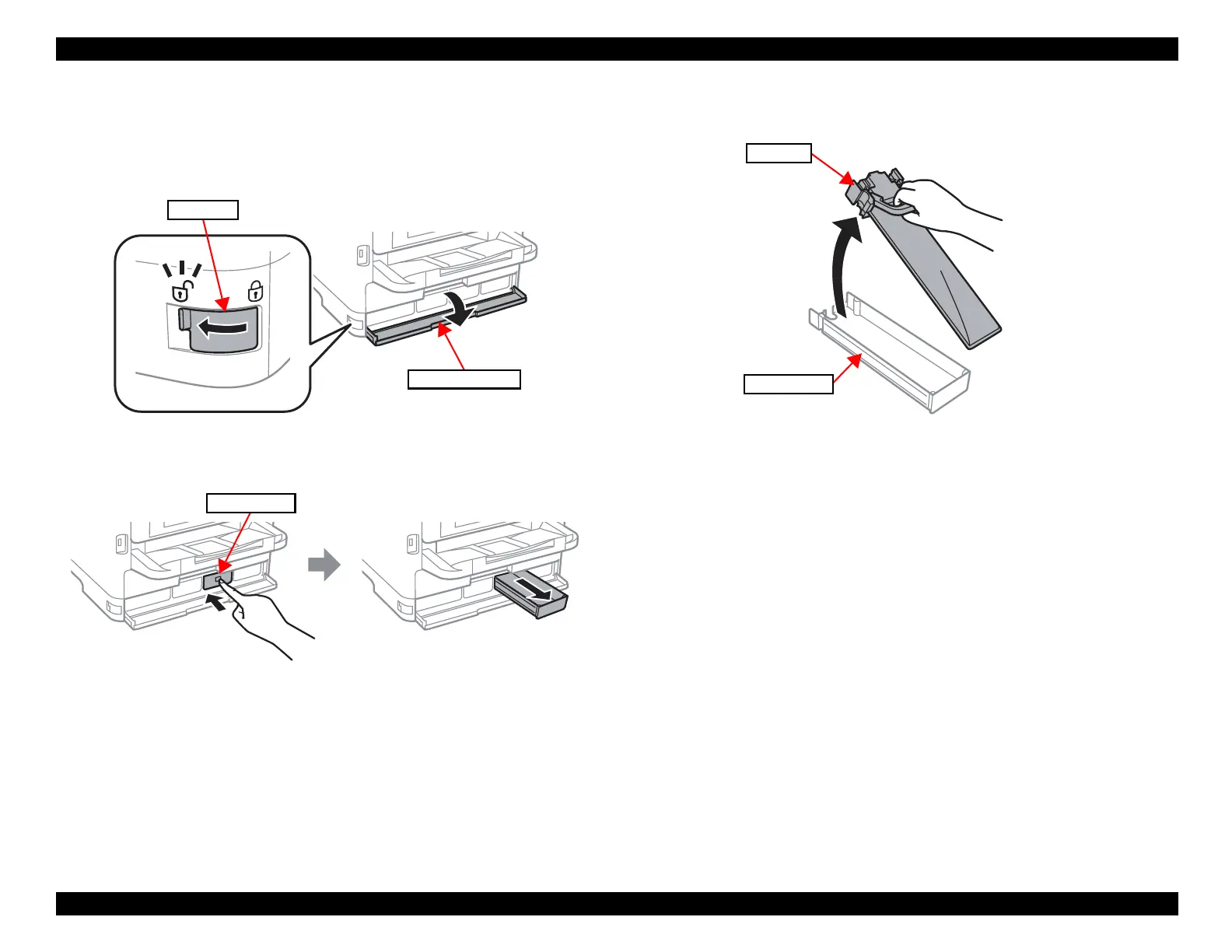

1. Slide the Lock Lever in the direction of the arrow, then Open the RIPS Front
Cover.
Figure 6-18. Opening the RIPS Front Cover
2. Push the Ink Pack Tray, then remove it.
Figure 6-19. Removing the Ink Pack Tray
3. Remove the Ink Pack.
Figure 6-20. Removing the Ink Pack Tray
Lock Lever
RIPS Front Cover
Ink Pack Tray
Ink Pack
Ink Pack Tray
