Configuration and operating principles Motor, Sensor, Clutch, and Solenoid Specifications 37
Confidential
3.2.3 Printer Main Unit (Encoder sensors and PW sensor)

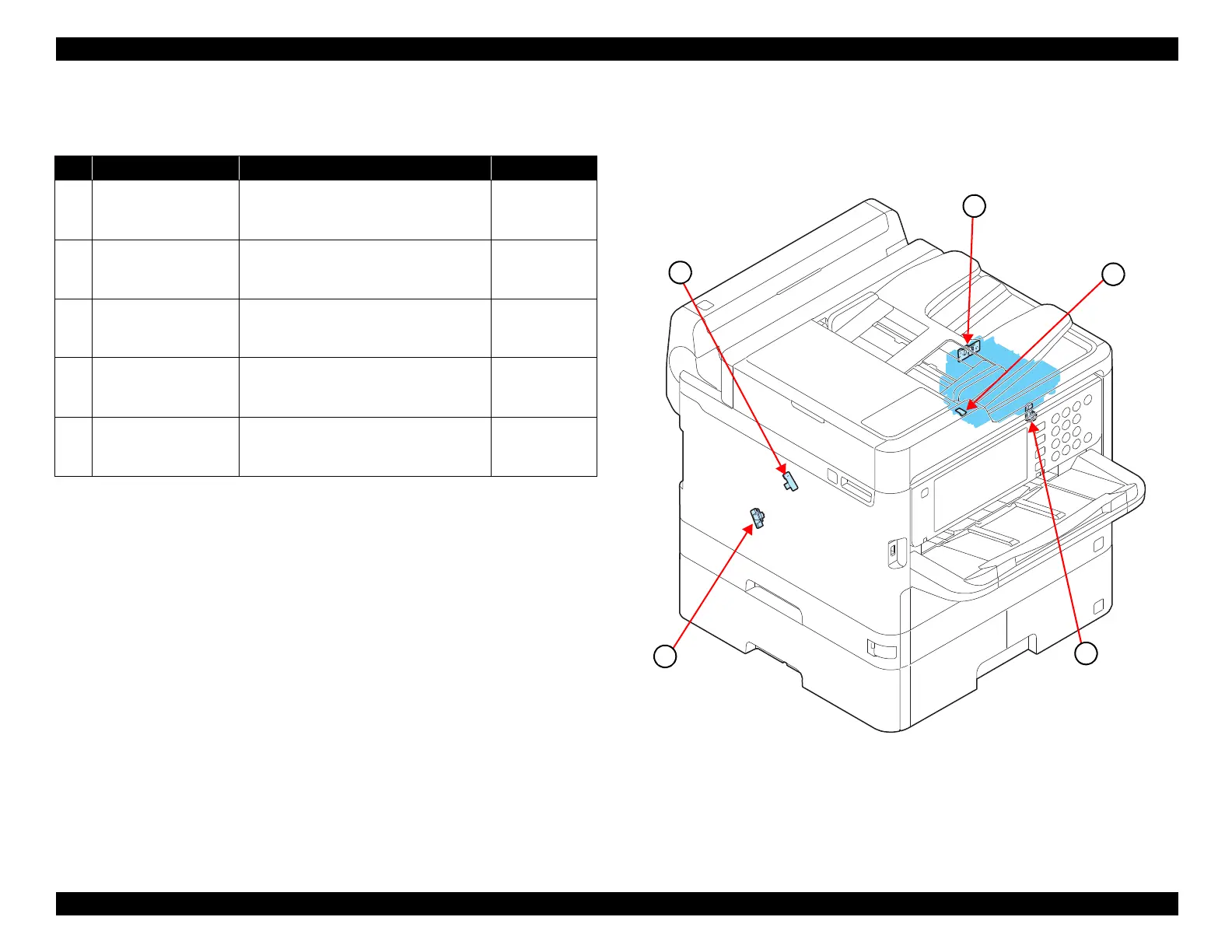

Figure 3-14. Encoder sensors and PW sensor
Table 3-14. Encoder sensors and PW sensor
No. Name Function Type
1 CR Encoder
Used for CR operation control (CR scale
reading).
Transmissive
photo-interrupter
(3.3VDC±5%)
2 ASF Encoder
Used for paper loading driving (ASF
motor) control.
Transmissive
photo-interrupter
(3.3VDC±5%)
3 PF Encoder
Used for paper feed driving (PF motor)
control.
Transmissive
photo-interrupter
(3.3VDC±5%)
4IS Encoder
Used for ink eject driving (I/S motor)
control.
Transmissive
photo-interrupter
(3.3VDC±5%)
5 PW Sensor
Used for paper leading edge and paper
width detection.
Reflective photo-
interrupter
(3.3VDC±5%)
1
2
3
4
5

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
