Adjustment Adjustment and Inspection Details 559
Confidential
7.3 Adjustment and Inspection Details
7.3.1 Mechanical Adjustments and Inspections
PG ADJUSTMENT
 Tools

Thickness gauges for PG check
 Teflon tape (part code: 1684353)
 Preparing the thickness gauge
C H E C K
P O I N T
 The standard range of the PG is as follows:
• Standard: 1.60 ± 0.1 mm
 The Print Head of this printer has an integral structure of
the Printhead Cover and Printhead nozzle surface.
Therefore, if the thickness gauge touches the nozzle
surface in the same way as performed in the traditional
procedure, the nozzle surface may be damaged. When
checking the platen gap, make sure to apply Teflon tape
(thickness: 0.08 mm) on all the thickness gauges used for
checking the Platen Gap in advance.
 Use commercially available Teflon tape of 0.08 mm in
thickness.

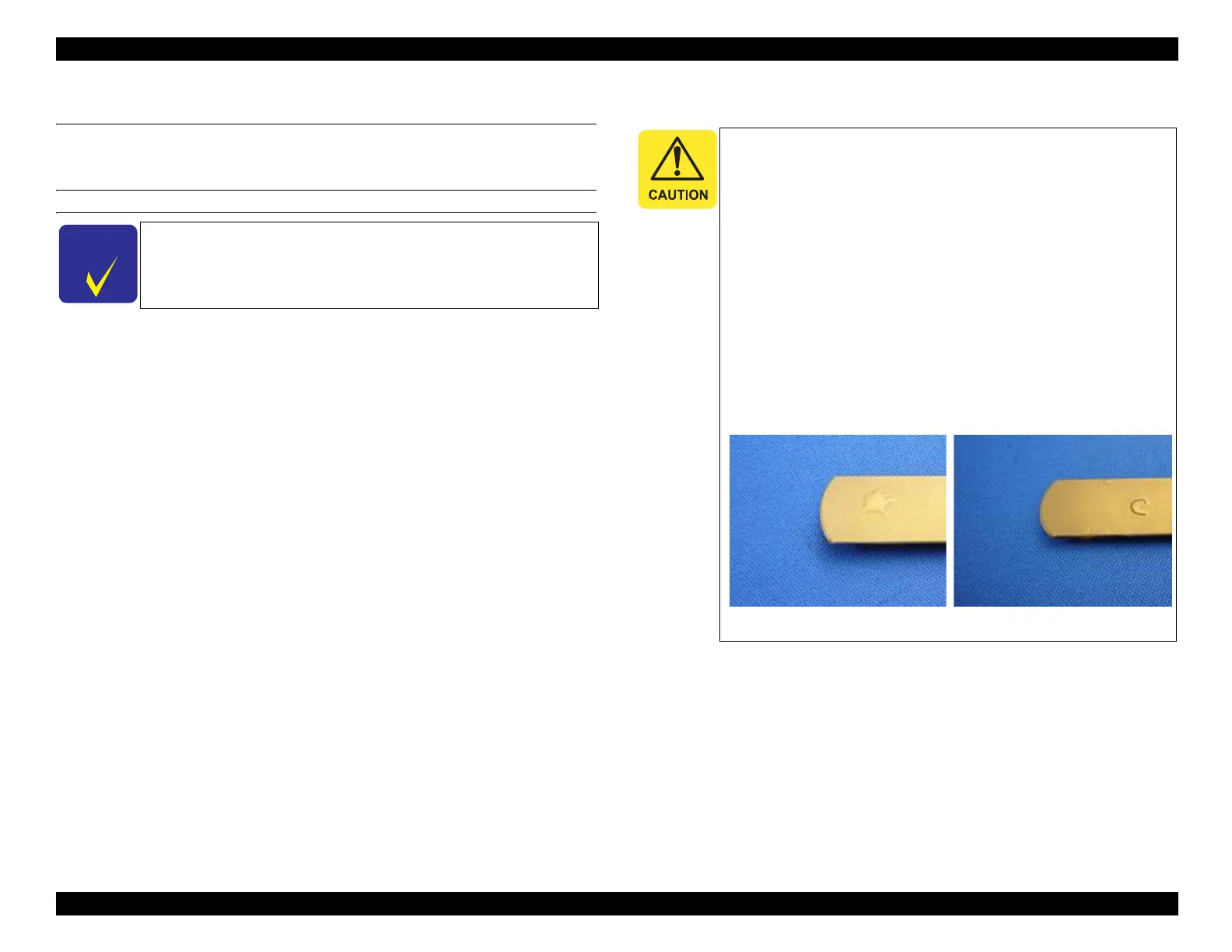

 When applying Teflon tape on the thickness gauges, make
sure no bubbles or foreign material remain under the
tape.
Bubbles Foreign materials

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
