EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 235
Confidential
6.2.2 Preparation for servicing
6.2.2.1 Unlocking the CR Unit
1. Remove the Housing Right.
(WF-C5700 Series/ET-8700: 6.2.4.1 Housing (WF-C5700 Series/ET-8700) (1)
(p. 239), WF-C5200 Series: 6.2.4.4 Housing (WF-C5200 Series) (2) (p. 254))
2. Rotate the gear of the Inksystem Unit in the direction of the arrow, and move the
CR Unit to the 80-digit side.

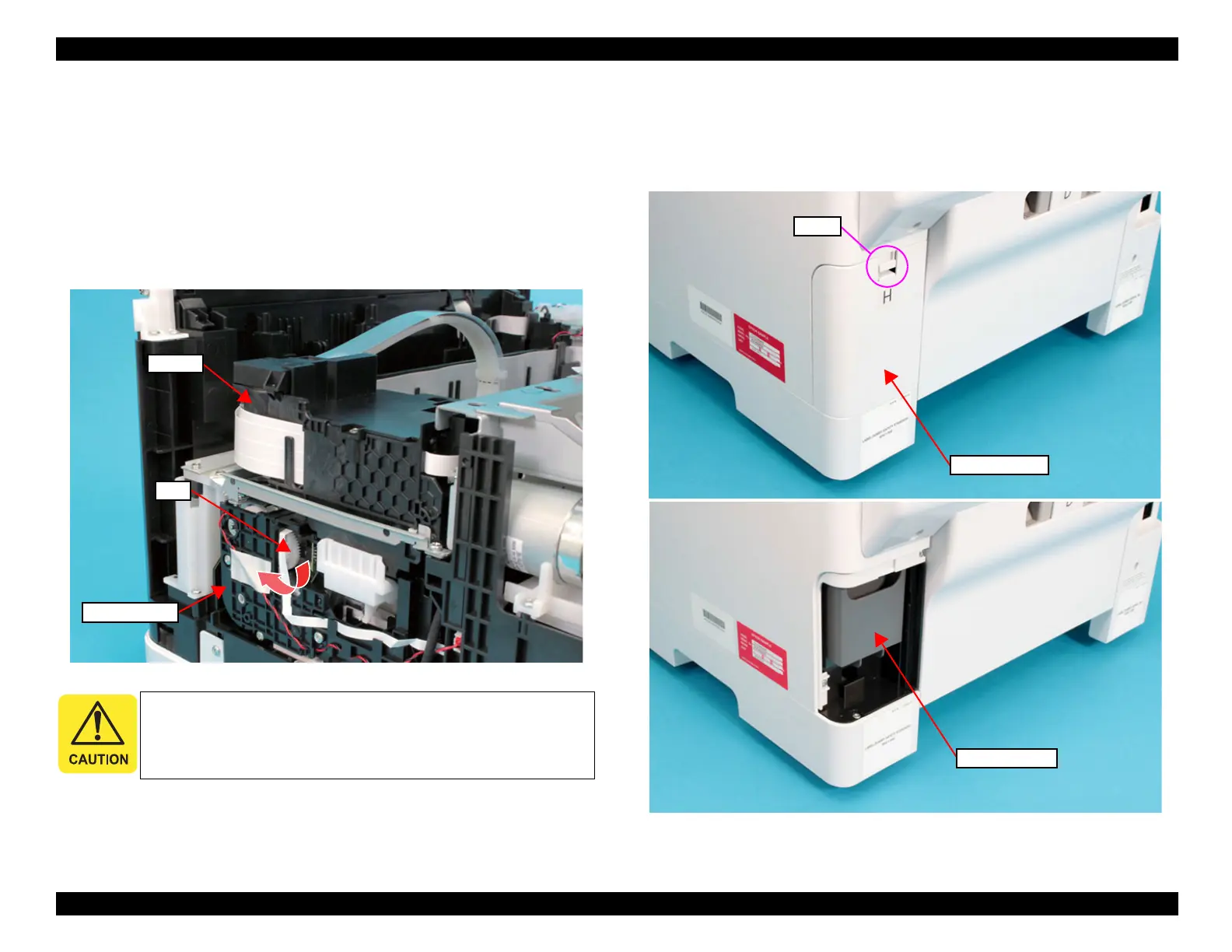

Figure 6-16. Unlocking the CR Unit
6.2.2.2 Removing the Maintenance Box
1. Disengage the hook, and remove the Ink Eject Cover.
2. Remove the Maintenance Box.
Figure 6-17. Removing the Maintenance Box
When rotating the gear of the Inksystem Unit, take extra care not
to damage or disconnect the FFC by touching it.
Gear
Inksystem Unit
CR Unit
Ink Eject Cover
Hook
Maintenance Box

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
