3.3.5 Inksystem mechanism
3.3.5.1 Overview
The inksystem mechanism of this product is composed of the Inksystem assy,
and Maintenance Box.
The ink sucked by the Cap mechanism and Pump mechanism from the
Printhead is drained via the Waste Ink Tube and into the Waste Ink Pad in the
Maintenance Box.
The amount of waste ink is controlled by the counter in the firmware taking the
amount of evaporation into account so as not to let the ink leak out of the
printer because the waste ink exceeds the limit of the storage capacity.
Further, this product uses a mechanism by which the user him/herself can
replace the Maintenance Box.

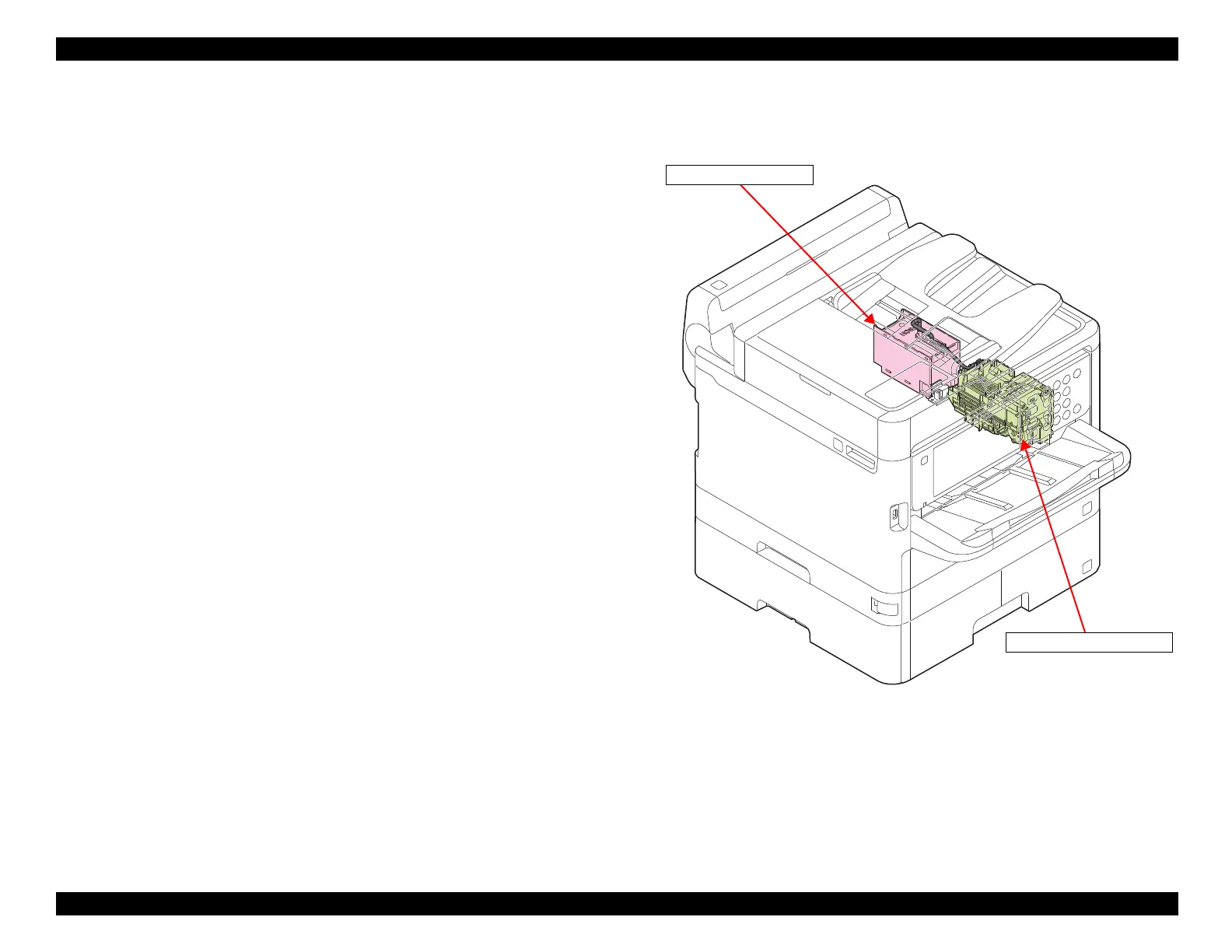

Figure 3-39. Ink system mechanism
Inksystem Assy
Maintenance Box

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
