Adjustment Adjustment and Inspection Details 567
Confidential
7.3.2.2 Adjustment (Mechanical)
MOTOR HEAT PROTECTION CONTROL
 Target adjustment
 CR motor heat protection control
 PF motor heat protection control
 IS motor heat protection control
 ASF motor heat protection control
 Scanner/ADF motor heat protection control
 Adjustment Procedure
1. Start the Adjustment Program, and select the target adjustment item.
2. Place a check mark for the replaced component, press the Perform button, and
then execute motor heat protection control.

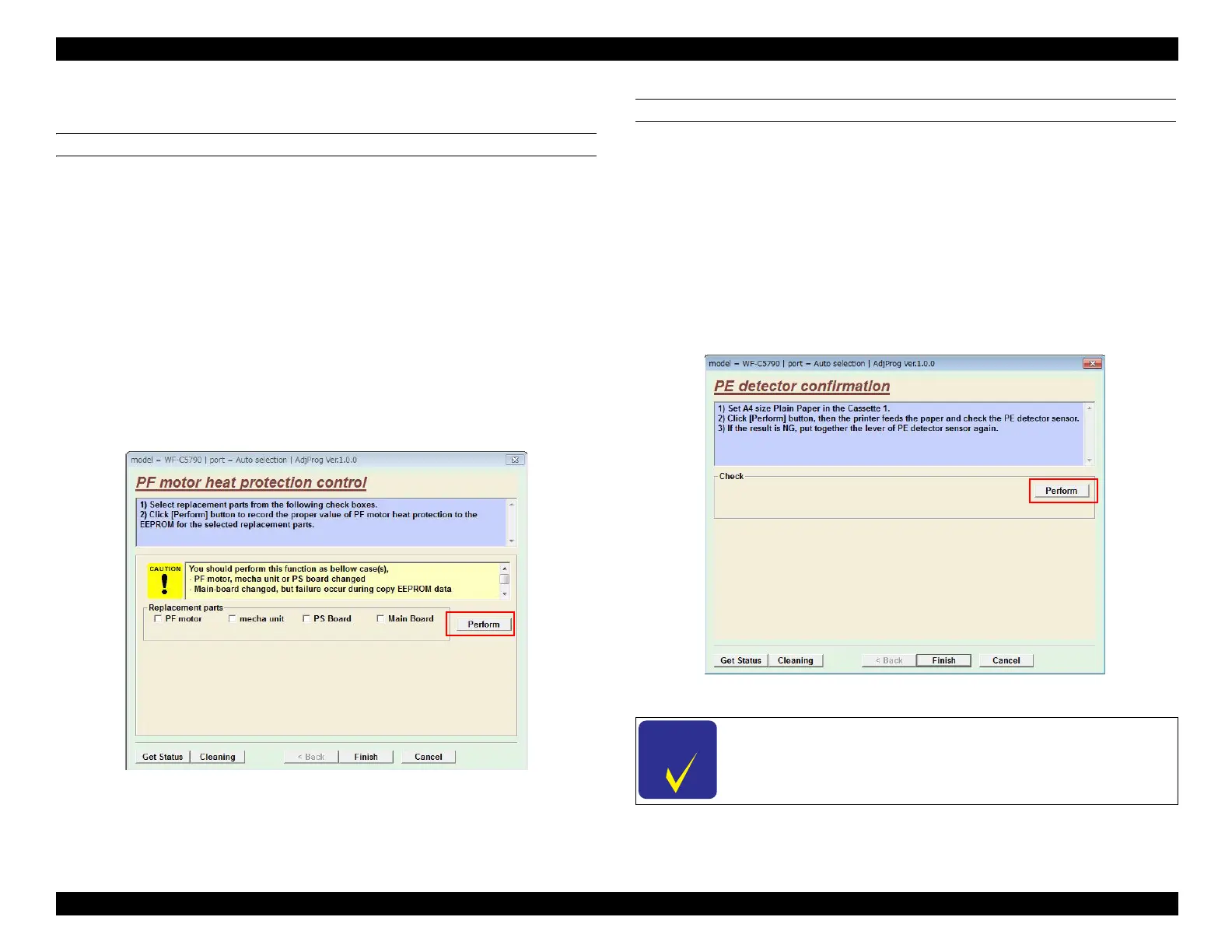

Figure 7-13. Adjustment screen (E.g. PF motor heat protection control)
PE DETECTOR CONFIRMATION
 Paper and feed tray
 Paper size: A4
 Paper type: Plain paper
 Paper feed tray: Paper Cassette 1st
 Adjustment Procedure
1. Load paper into the Paper Cassette 1st.
2. Start the Adjustment Program, and select “PE Detector confirmation”.
3. Press the Perform button to execute “PE Detector confirmation”.
Figure 7-14. PE Detector confirmation screen
C H E C K
P O I N T
If the check results are NG, check the installation state of the PE
Lever and PE Sensor.
