Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 276
Confidential

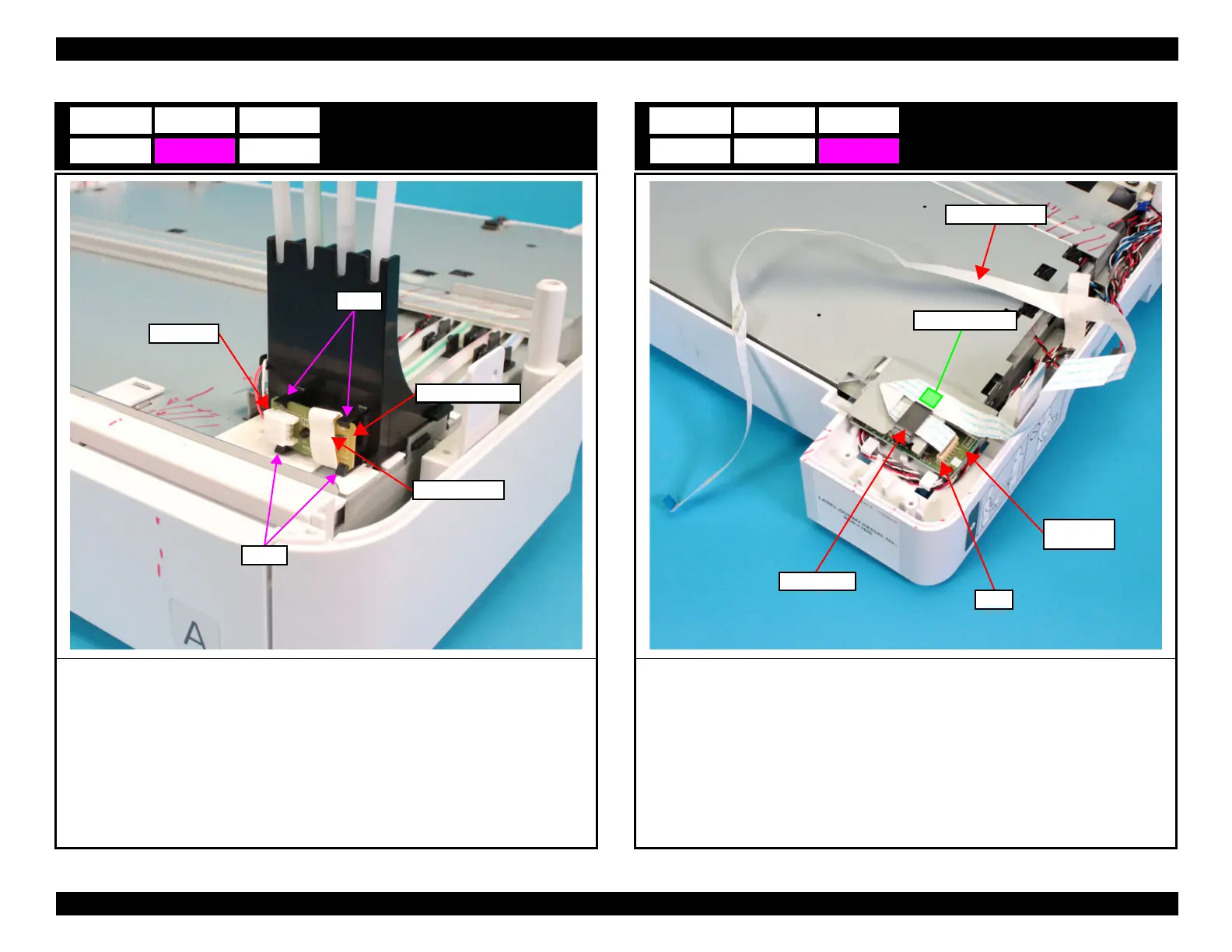

Ink Leak Sensor
1. Disconnect the cable from the connector.
2. Remove the Ink Porous Pad from the Ink Leak Sensor.
3. Disengage four hooks, then remove the Ink Leak Sensor.
E13
Ink Porous Pad
Connector
Ink Leak Sensor
Hooks
Hooks
Ink Sensor FFC
1. Disconnect the Ink Sensor FFC from the connector (CN1) on the Ink Sensor YMCBk.
2. Pull the Ink Sensor FFC from the ferrite core.
3. Peel off the Ink Sensor FFC from the frame.
F13
CN1
Ink Sensor
YMCBk
Ferrite core
Ink Sensor FFC
Double-sided tape

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
