EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 299
Confidential

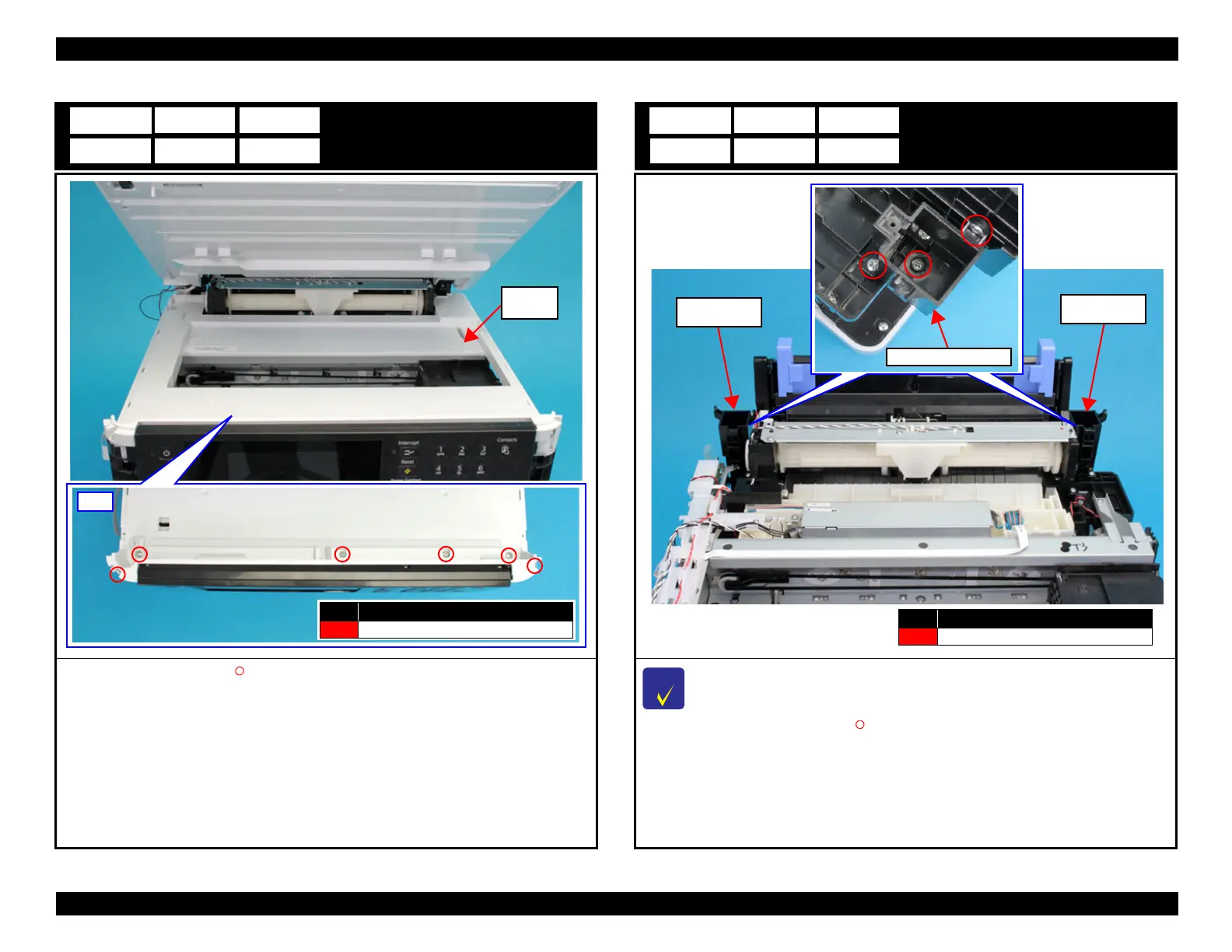

Housing Upper
1. Remove the six screws (S4: ), then remove the Housing Upper.
A6 B6
D6
C6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Housing
Upper
Hinge Lower Cover
C H E C K
P O I N T
When removing the Main Board Assy on the way to the target part, remove the Hinge
Assy (Left) only.
1. Remove the each three screws (S4: ), and remove the two Hinge Lower Cover.
A7 B7
D7
C7
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hinge Lower
Cover (Right)
Hinge Lower
Cover (Left)
Hinge Lower Cover
