Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 302
Confidential

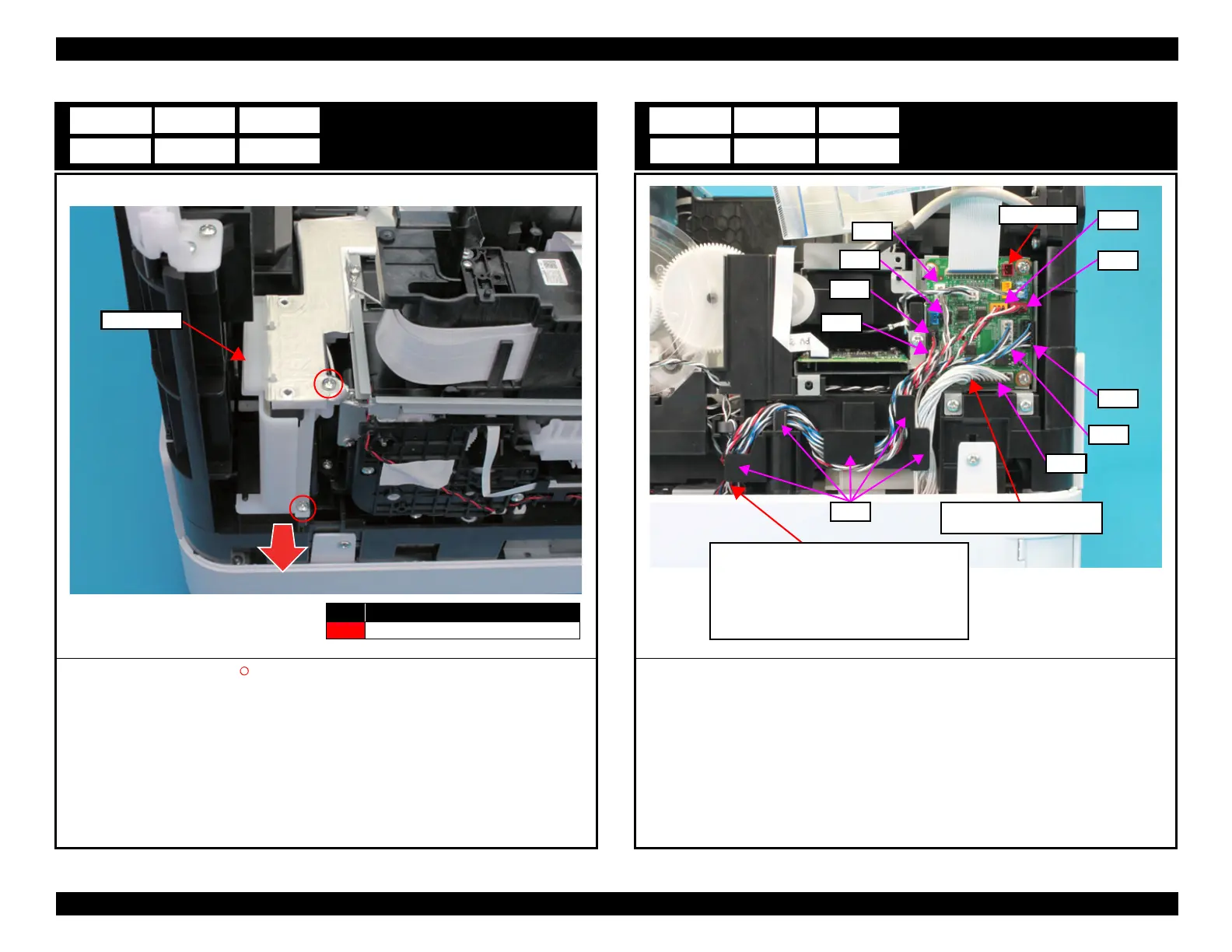

Guide Cover
1. Remove the two screws (S4: ), and remove the Guide Cover in the direction of the arrow.
A11 B11
D11
C11
Guide Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
RIPS Unit
1. Disconnect the cables from the connectors (CN2, CN10, CN11, CN12, CN22, CN30,
CN31, CN54, CN55) on the Relay Board.
2. Release the cables from the five tabs on the Frame Base.
A12 B12
D12
C12
CN30
CN31
CN54
CN55
CN2
CN10
CN11
CN12
CN22
Relay Board
Tabs
Drawer Connector (CN2)
Cover Open Sensor (CN22)
Ink End Sensor (C/M) (CN30)
Ink End Sensor (Bk/Y) (CN31)
Ink Leak Sensor 1 (CN11)
Ink Leak Sensor 2 (CN12)
Ink Leak Sensor 3 (CN54)
Ink Leak Sensor 4 (CN55)
Temperature and Humidity Sensor(CN10)

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
