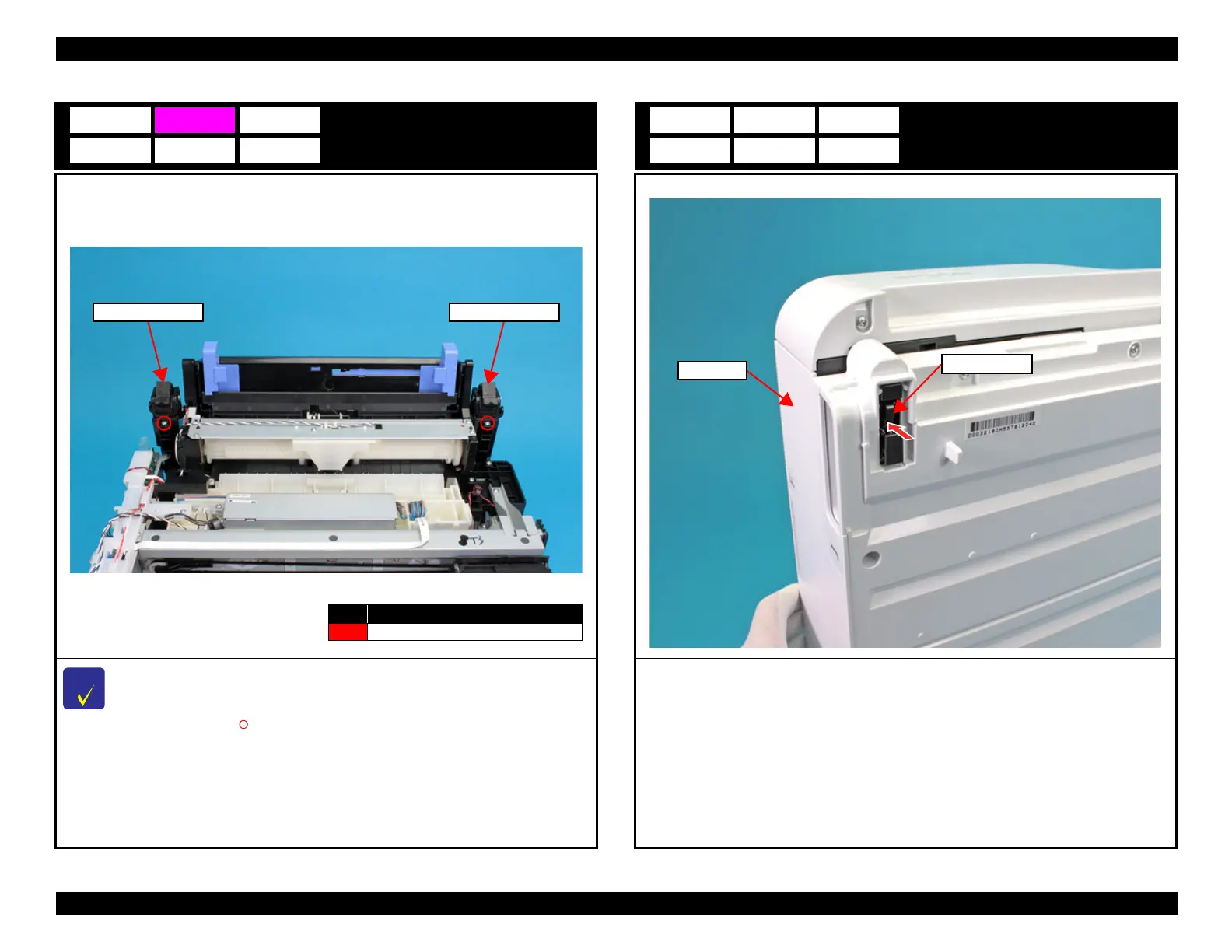

Hinge Assy
C H E C K
P O I N T
When removing the Main Board Assy on the way to the target part, remove the Hinge
Assy (Left) only.
1. Remove the each screw (S4: ), and remove the two Hinge Assy.
B8
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hinge Assy (Right)Hinge Assy (Left)
Open the ADF Unit
1. Push the ADF lock lever in the direction of the arrow, and open the ADF Unit.
D8 E8
C8
ADF Unit
ADF lock lever
