EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 317
Confidential

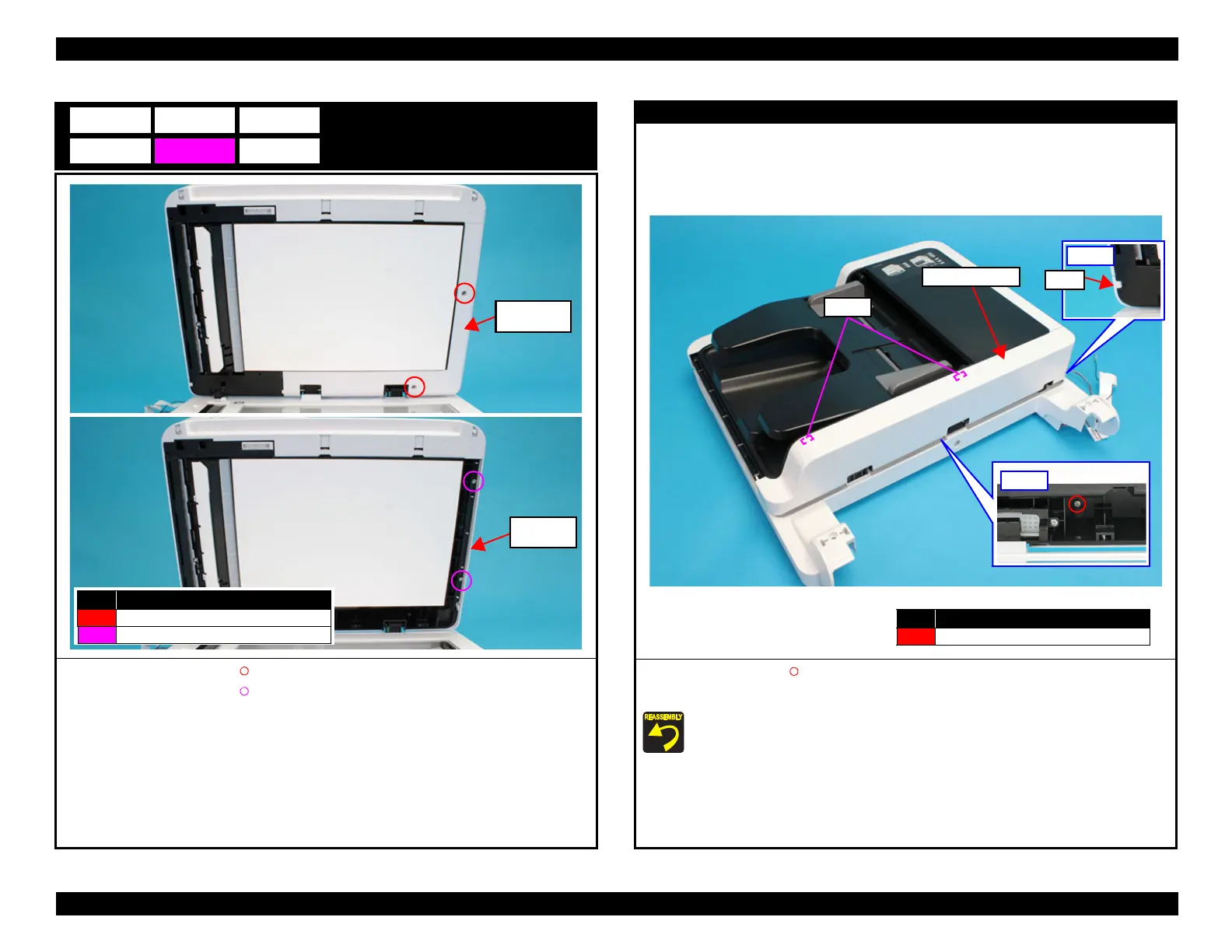

Rear ADF Cover
1. Remove the two screws (S4: ), then remove the ADF Lower Cover.
2. Remove the two screws (S4: ), then remove the ADF Right Cover.
E9
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
ADF Right
Cover
ADF Lower
Cover
Rear ADF Cover
3. Remove the screw (S4: ) that secures the Rear ADF Cover.
4. Disengage the hook of the Rear ADF Cover, then remove the Rear ADF Cover.
Attach the two dowels of the Rear ADF Cover to the holes on the ADF Base.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Bottom
Bottom
Dowels
Rear ADF Cover
Hook
