Disassembly/assembly Disassembly/Reassembly Procedures 322
Confidential

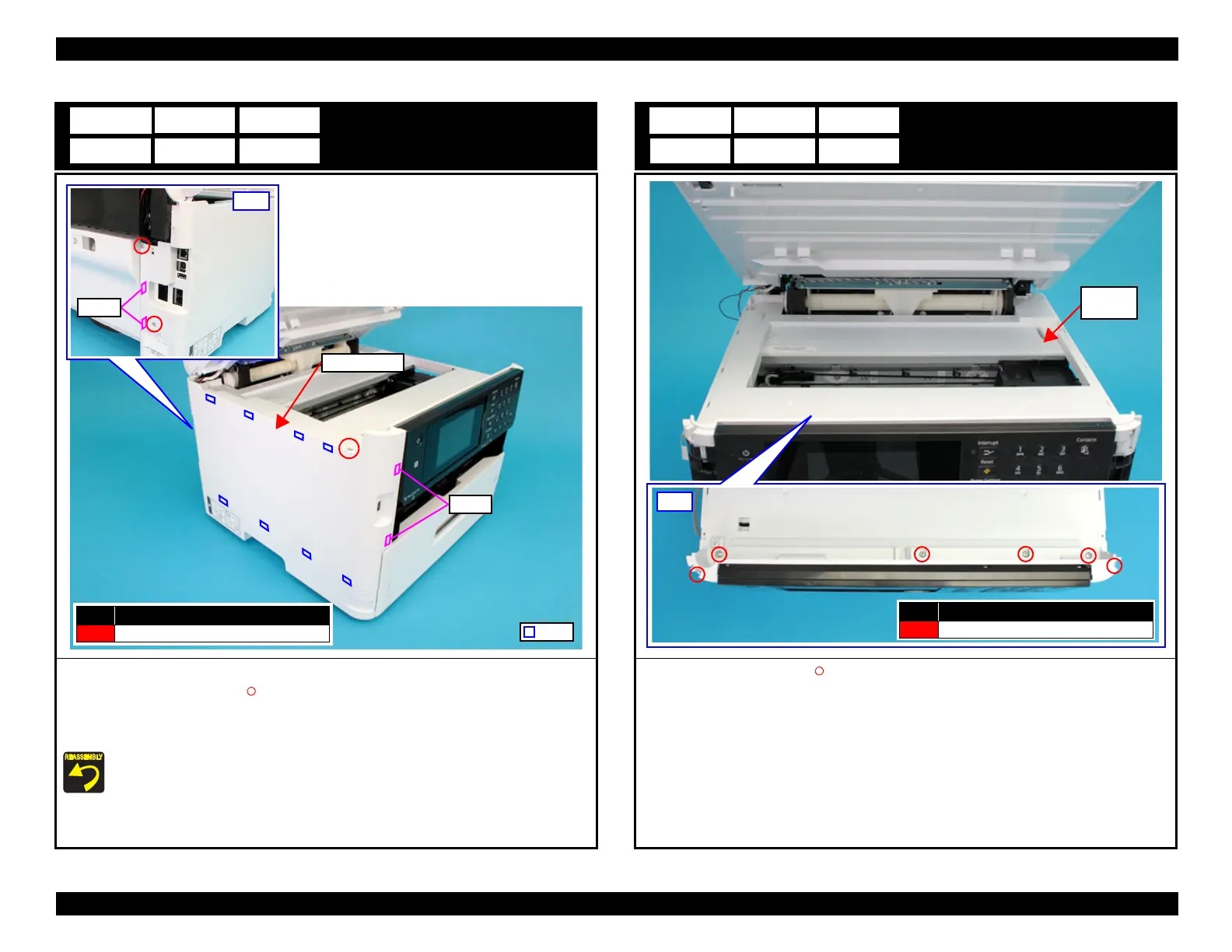

Housing Left
1. Open the ADF/SCN Unit.
2. Remove the three screws (S4: ) that secure the Housing Left.
3. Lift the Housing Left to release the two hooks on the front side of the Housing Left.
4. Disengage two hooks on the rear side of the Housing Left, and remove the Housing Left.
Insert the eight tabs on the Housing Left to the positioning hokes of the Housing
Upper and the Ink Supply Unit.
A5 B5
D5 E5
C5
F5
Housing Left
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Rear
Hooks
Tab
Housing Upper
1. Remove the six screws (S4: ), then remove the Housing Upper.
A6 B6
D6 E6
C6
F6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Housing
Upper

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
