Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 354
Confidential

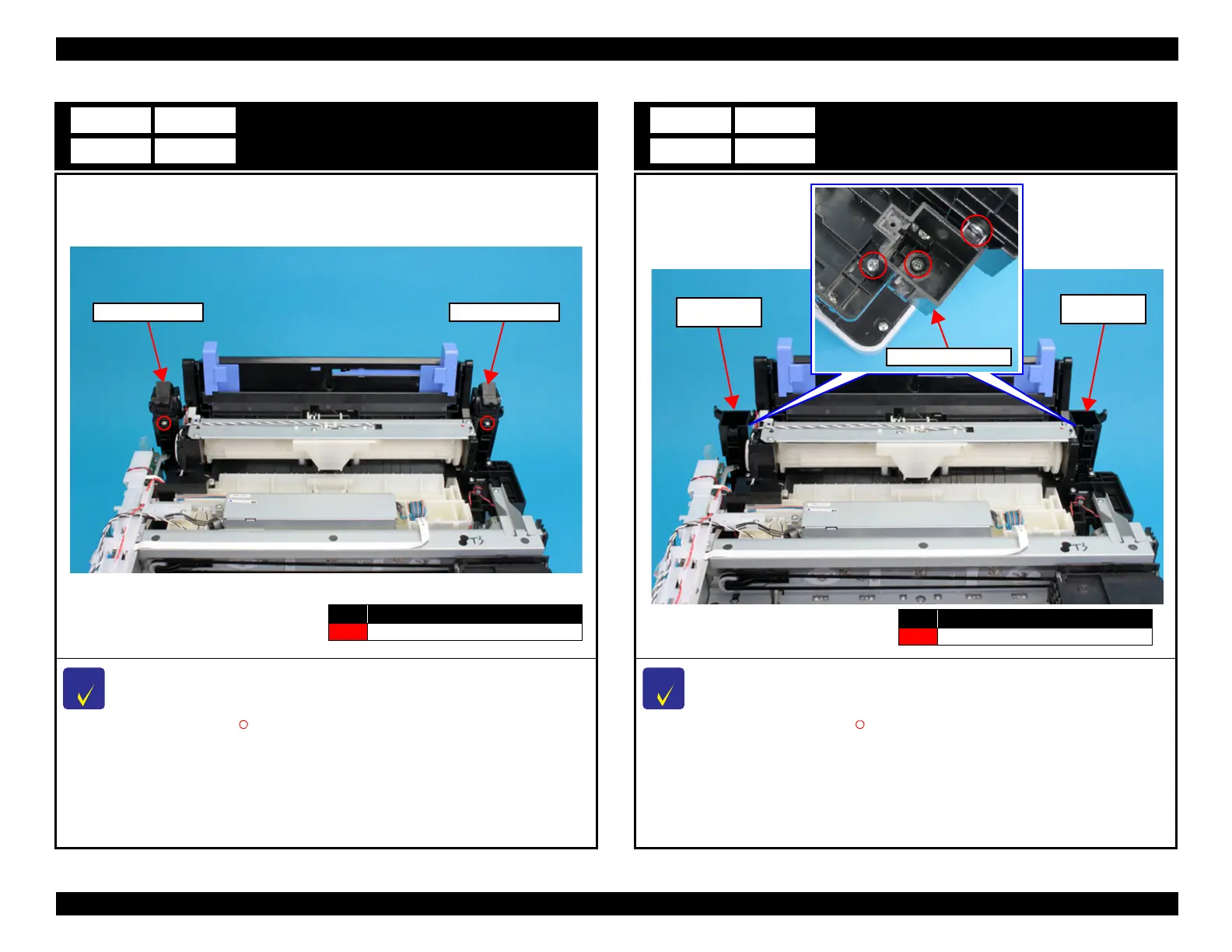

Hinge Assy
C H E C K
P O I N T
When removing the Main Board Assy on the way to the target part, remove the Hinge
Assy (Left) only.
1. Remove the each screw (S4: ), and remove the two Hinge Assy.
C9
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hinge Assy (Right)Hinge Assy (Left)
Hinge Lower Cover
C H E C K
P O I N T
When removing the Main Board Assy on the way to the target part, remove the Hinge
Assy (Left) only.
1. Remove the each three screws (S4: ), and remove the two Hinge Lower Cover.
C10
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hinge Lower
Cover (Right)
Hinge Lower
Cover (Left)
Hinge Lower Cover
