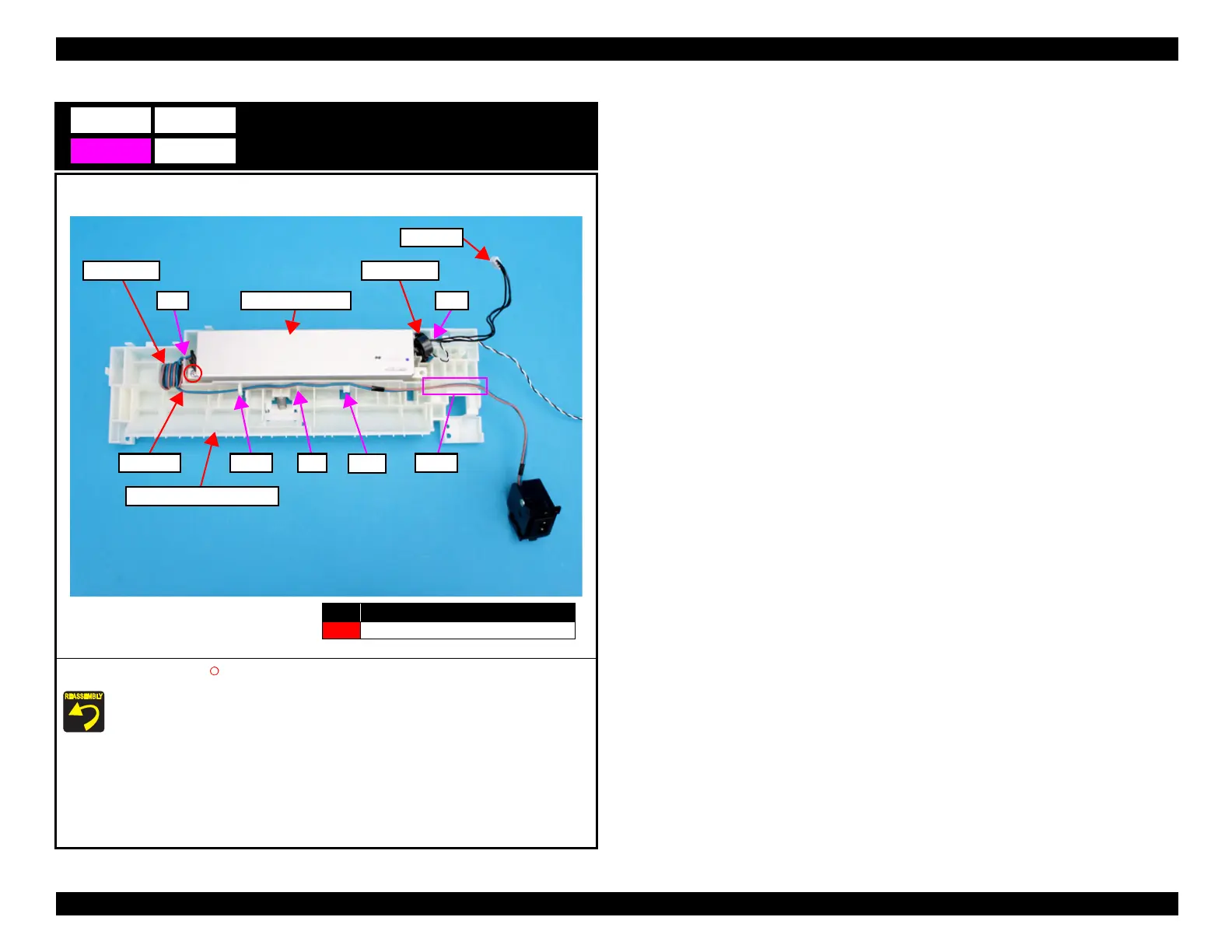

Power Supply Assy
1. Remove the screw (S4: ), then remove the Power Supply Assy.
 Route the AC Cable through the two slits, two hooks and guide on the Rea ASF Upper Guide
Assy.
 Route the PS Cable through the slit on the Rea ASF Upper Guide Assy.
C14
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
PS Cable
AC Cable
Ferrite Core
Ferrite Core
Power Supply Assy
Slit
Slit
Slit
Guide
Hook
Hook
Rea ASF Upper Guide Assy
