EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 386
Confidential

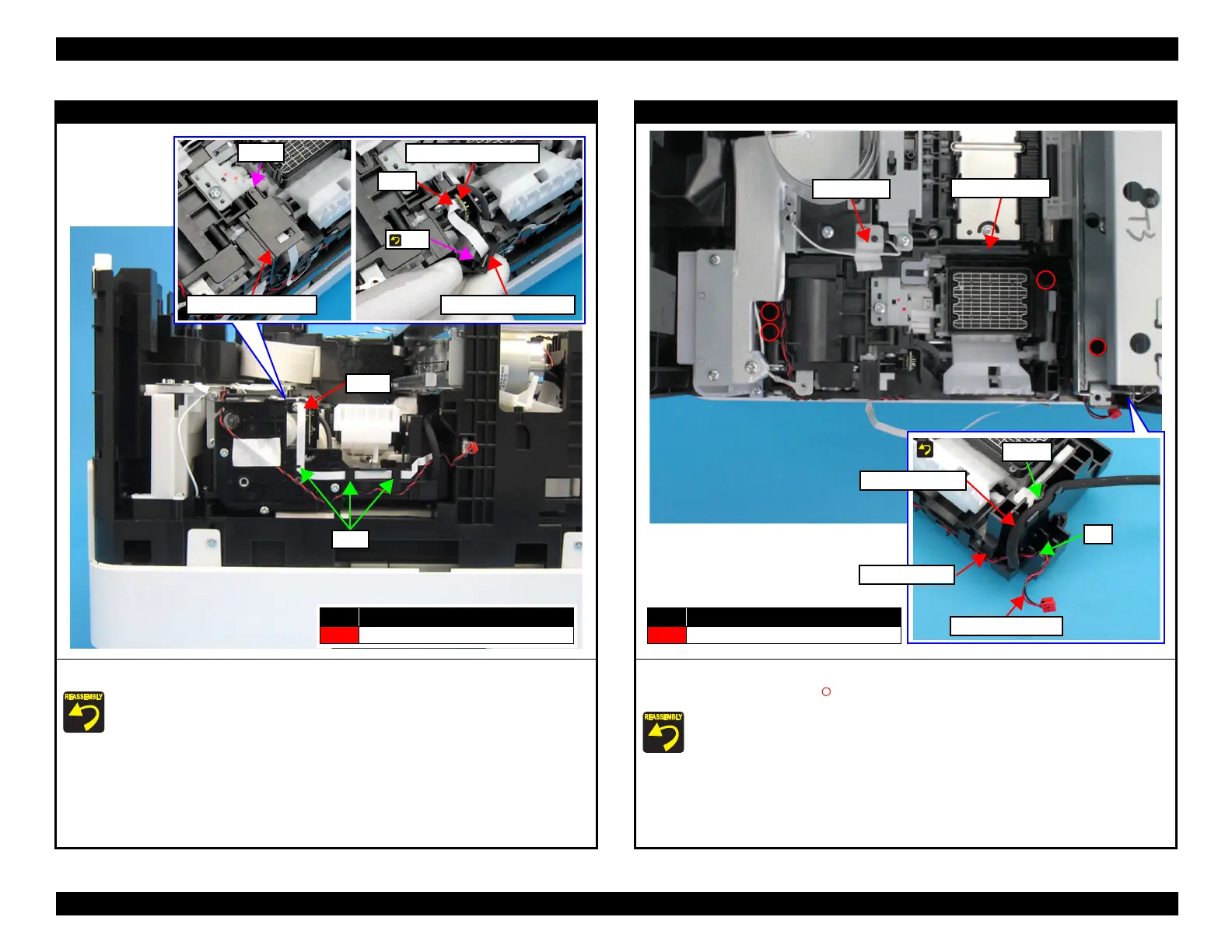

Inksystem Unit
4. Disengage hook, then remove the Upper Cap FFC Cover.
Route the FFC through the slit on the Upper Cap FFC Cover.
5. Disconnect the FFC from the Pump Encoder Sensor.
6. Release the FFC from the three tabs on the Inksystem Unit.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Upper Cap FFC Cover
Hook
Upper Cap FFC Cover
Pump Encoder Sensor
FFC
Slit
FFC
Tabs
Inksystem Unit
7. Peel off a piece of acetate tape.
8. Remove the four screws (S4: ), and remove the Inksystem Unit.
 Route the Wasted Ink Tube through the guide on the Inksystem Unit.
 Route the pump motor cable through the slit on the Inksystem Unit.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Inksystem Unit
Acetate tape
Guide
Pump motor cable
Slit
Wasted Ink Tube
Inksystem Unit
