Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 426
Confidential

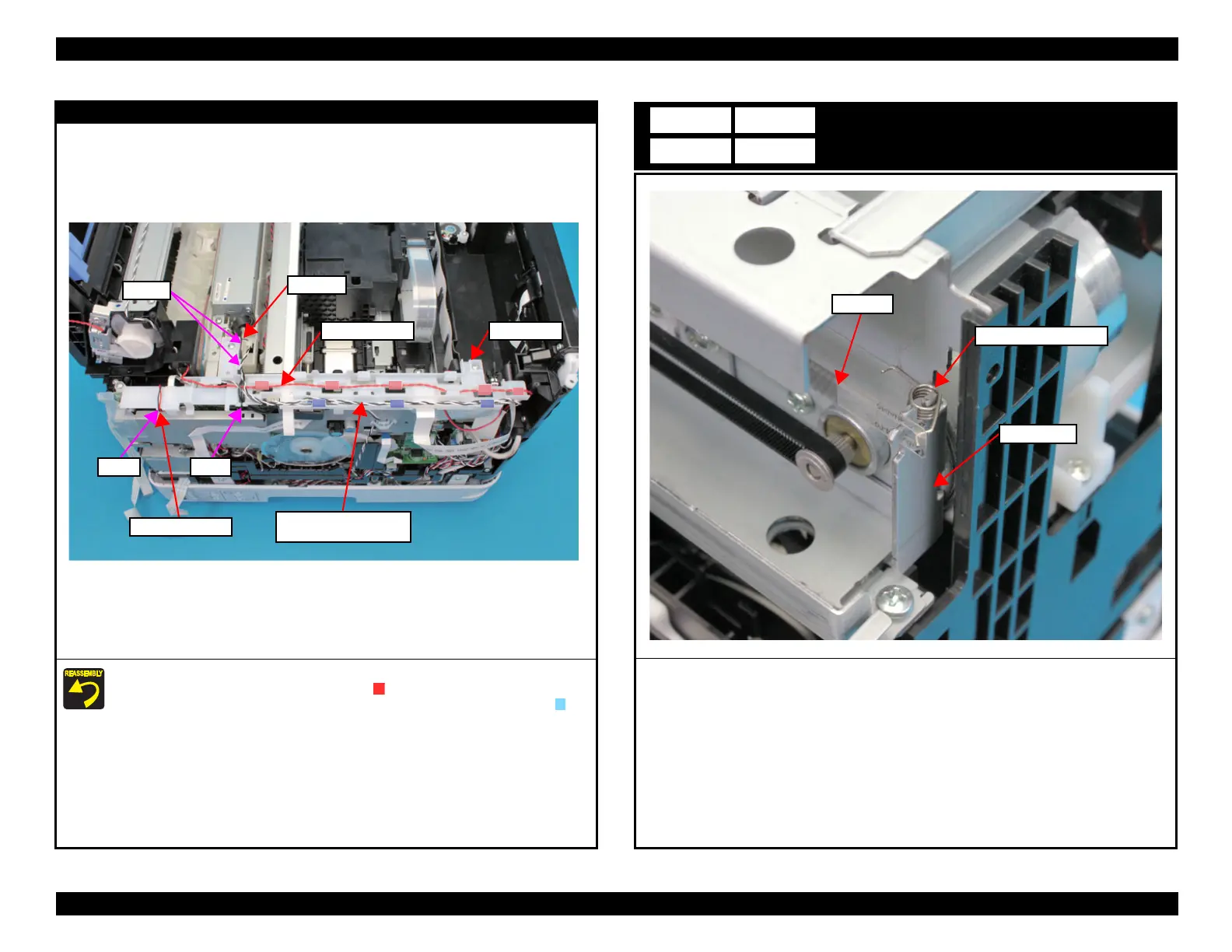

Cable Guide
 Route the PS cable through the two guides and hook on the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the rear ASF sensor cable and photo interrupter cable through the three hooks ( ) on
the Cable Guide.
 Route the ASF motor cable through the guide on the Cable Guide.
PS Cable
Rear ASF sensor cable/
Photo interrupter cable
ASF motor cable
Guides
HookGuide
Solenoid cable
Cable Guide
Extension Spring 11.11
1. Remove the Extension Spring 11.11 from the CR Scale.
2. Remove the Extension Spring 11.11 from the Main Frame.
A11 B11
C11
Extension Spring 11.11
CR Scale
Main Frame

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
