Disassembly/assembly Disassembly/Reassembly Procedures 430
Confidential

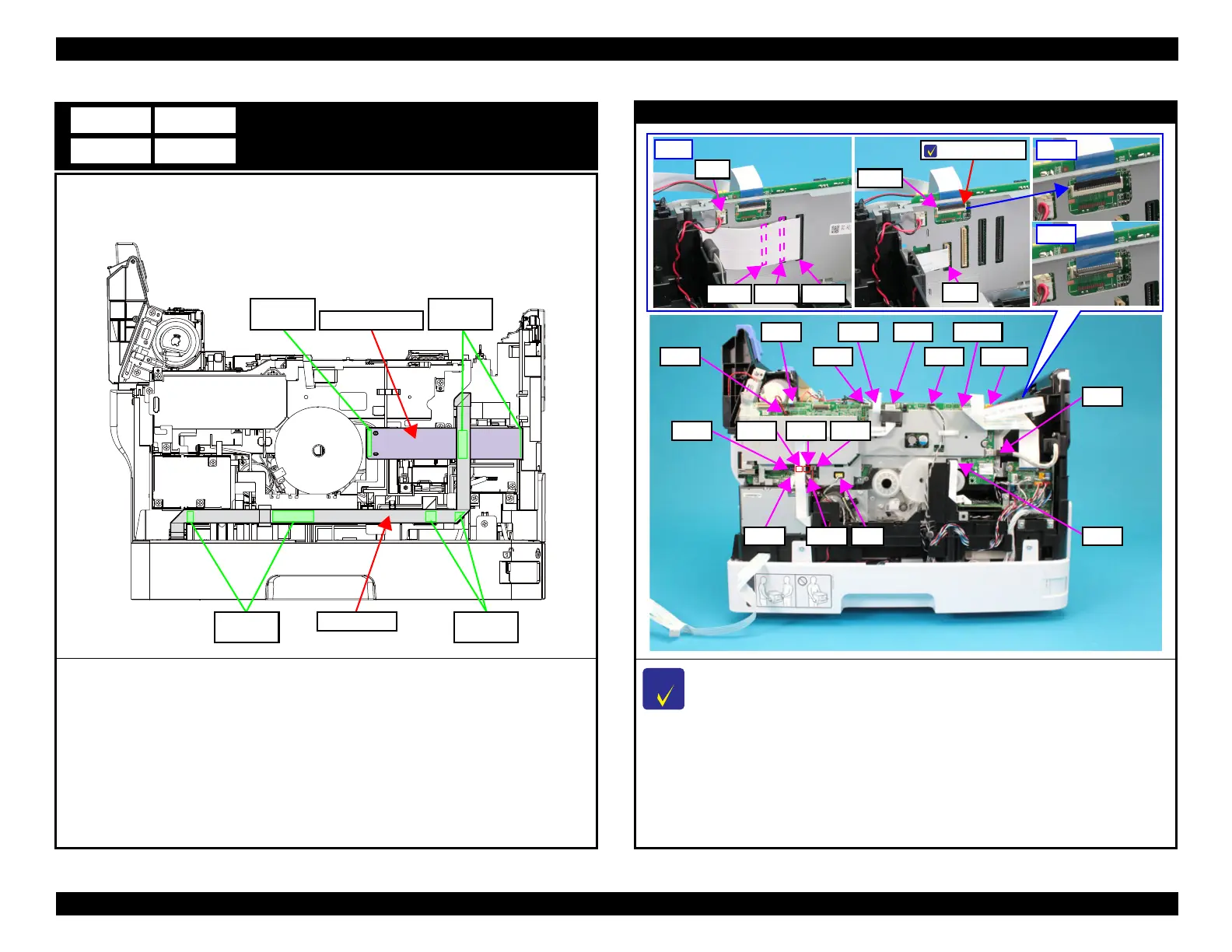

Main Board Assy
1. Peel off the CRCM FFC.
2. Peel off the CRCM FFC Sheet.
B16
C16
CRCM FFC
CRCM FFC Sheet
Double-
sided tape
Double-
sided tape
Double-
sided tape
Double-
sided tape
Main Board Assy
C H E C K
P O I N T
When disconnecting the Panel FFC (CN42), make sure to unlock the connector lock
beforehand.
3. Disconnect the following connectors from the board. (* are WF-C5700 Series/ET-8700
only)
CN8
CN42
Connector lock
CN67CN66CN68
CN3
Back
CN110
CN609CN53
CN44CN9
CN74
CN55
CN80
CN33
CN34CN2CN52CN50
CN77 CN75 CN73
Close
Open
CN72
•CN2 •CN3* •CN8 •CN9 •CN33* •CN34
•CN42 • CN44* •CN50 •CN52 •CN53 •CN55
•CN66 •CN67 •CN68 •CN72 •CN73 •CN74
•CN75 •CN77 •CN80 • CN110 •CN609
