EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 434
Confidential

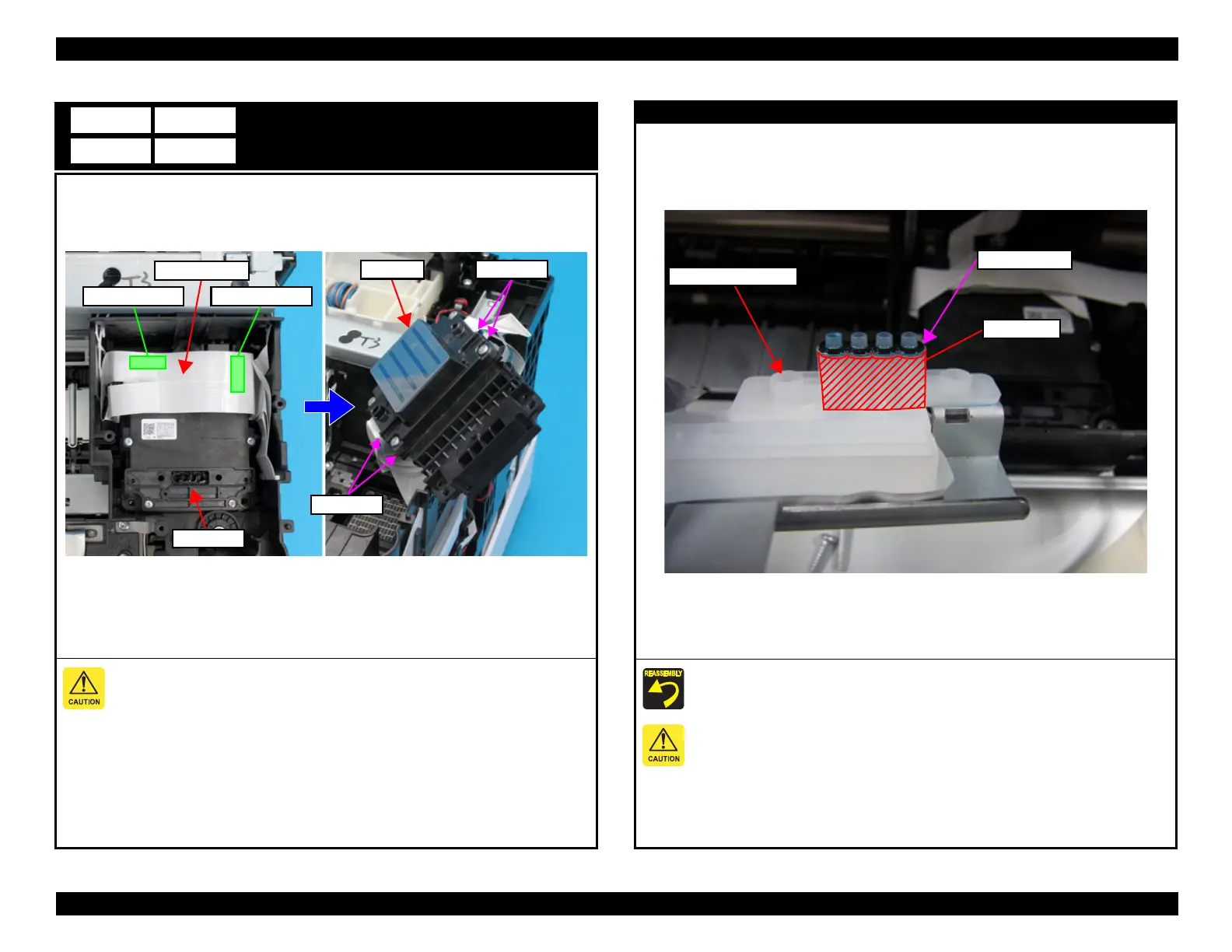

Printhead
Do not touch the nozzle surface of the Printhead.
1. Peel off the Head FFC Assy from the Printhead, then remove the Printhead.
2. Disconnect the Head FFC Assy from the four connectors of the Printhead.
B19
C19
Head FFC Assy
Printhead
Double-sided tapeDouble-sided tape
Printhead
Connectors
Connectors
Printhead
Make sure to clean the Ink tube joint part of Ink Supply Unit by using the Cleaning
stick, because perform the Ink Leak Check correctly.
 If ink is remained to ink tube joint part of Ink Supply Unit, Ink Leak Check can not perform
correctly. Therefore cleaning the ink surely.
 Replace the seal joint head with the new one because it cannot be reused.
 Check the seal joint head is not double-installed.
 Check the seal joint head is inserted all the way.
 Check the foreign object does not adhere on the seal joint head.
Ink Tube Connector
Seal Joint Head
Wiping area
