EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 438
Confidential

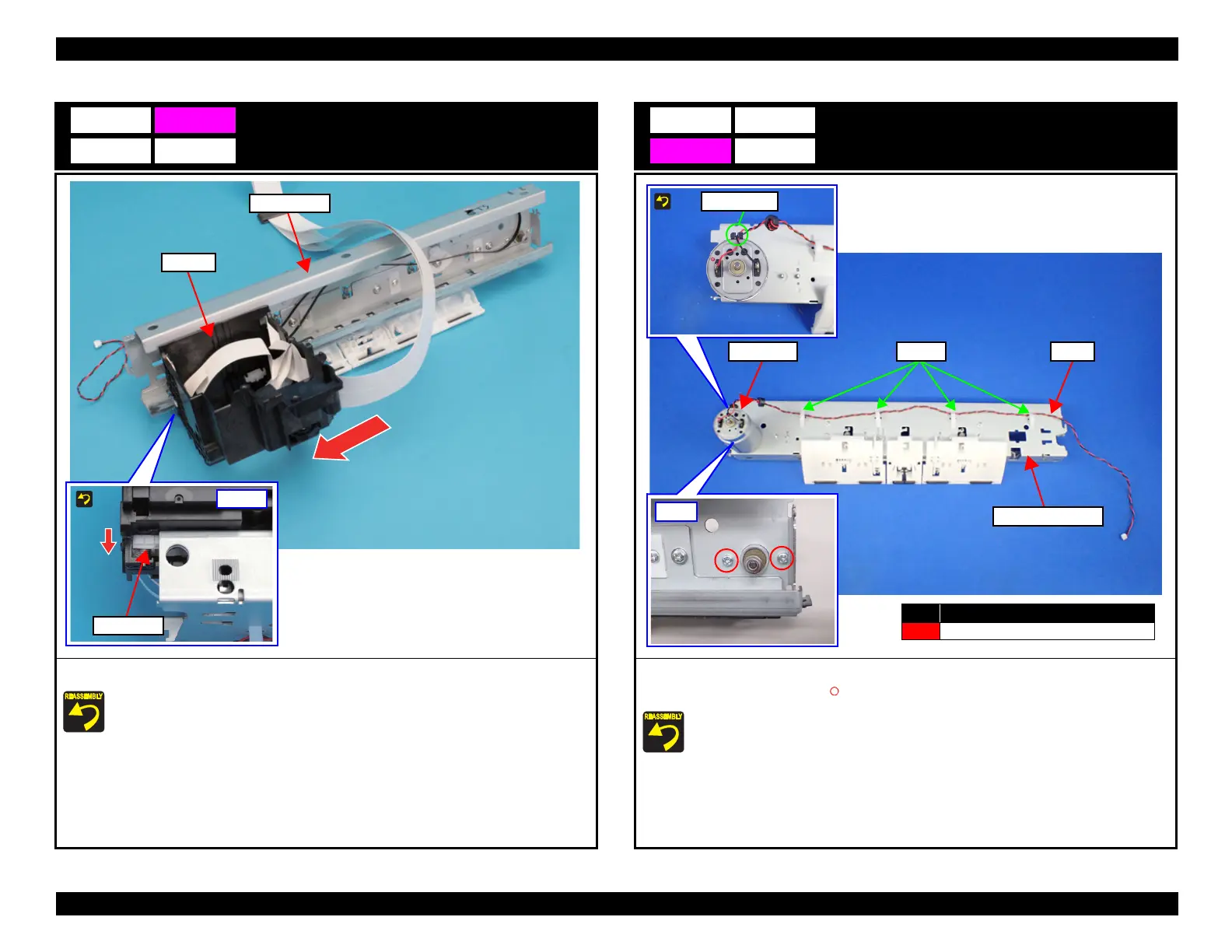

CR Unit
1. Slide the CR Unit in the direction of the arrow to remove it from the Main Frame.
Slide the CR Unit to the groove on the Main Frame while pressing the APG Slider in
the direction of the arrow.
B22
Bottom
APG Slider
CR Unit
Main Frame
CR Motor
1. Release the cable from four clamps on the Main Frame Assy.
2. Remove the two screws (S18: ), then remove the CR Motor from the Main Frame Assy.
Install the CR Motor with its cable holder facing upward.
C22
Cable
Clamps
Main Frame Assy
Cable holder
Front
No. Screw Type
S18
C.P.SCREW,3X4,F/ZN-3C
CR Motor

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
