Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 443
Confidential

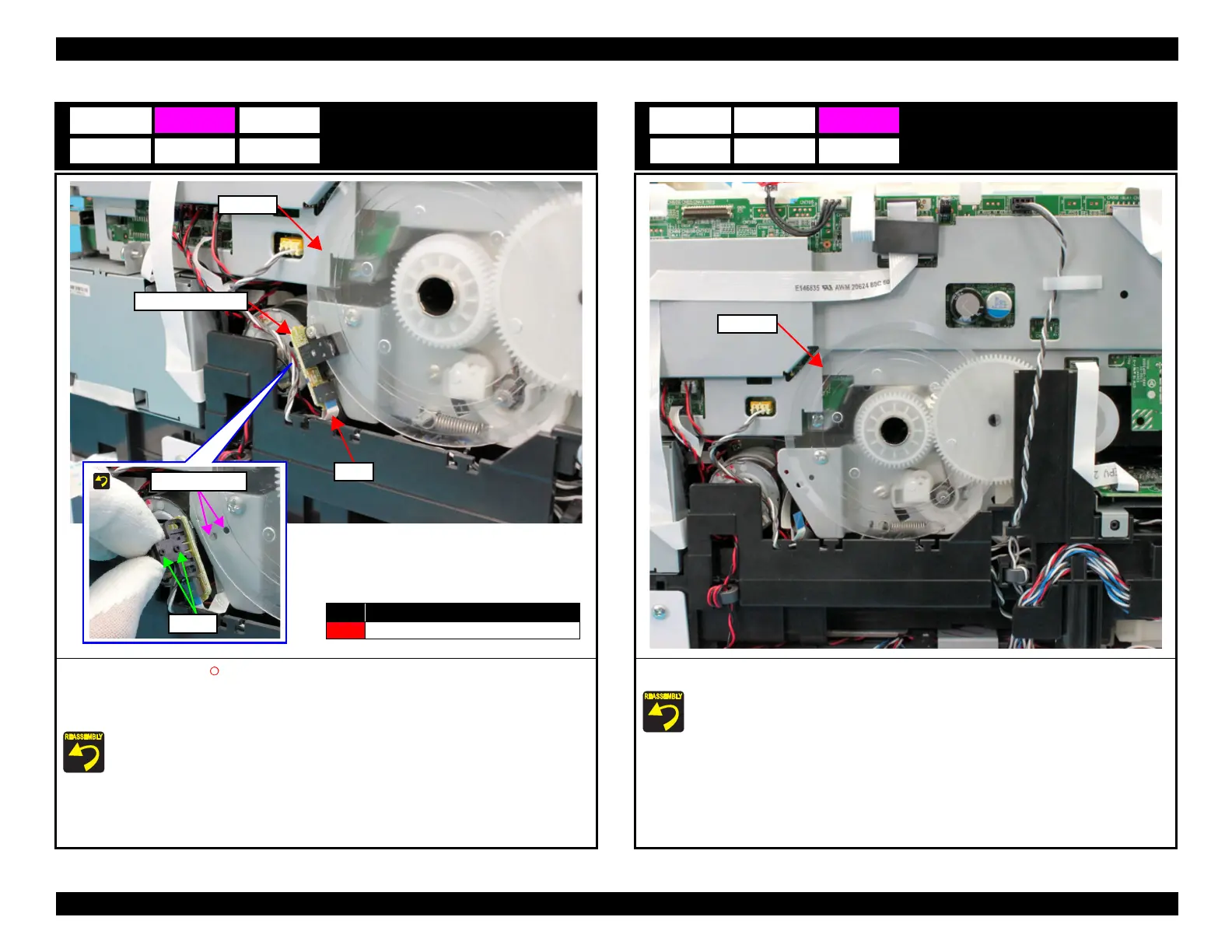

PF Encoder Board
1. Remove the screw (S9: ) that secures the PF Encoder Board.
2. Disconnect the FFC from the connector on the PF Encoder Board.
3. Remove the PF Encoder Board avoiding the PF Scale.
Attach the two dowels on the PF Encoder Board to the positioning holes of the frame.
B4 C4
PF Encoder Board
No. Screw Type
S9
C.B.S-TITE SCREW,2X8,F/ZN-3C
Dowels
Positioning holes
PF Scale
FFC
PF Scale
1. Peel off the PF Scale.
The PF Scale cannot be reused once it is removed. Make sure to replace it with a new
one.
C5
PF Scale
