EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 445
Confidential

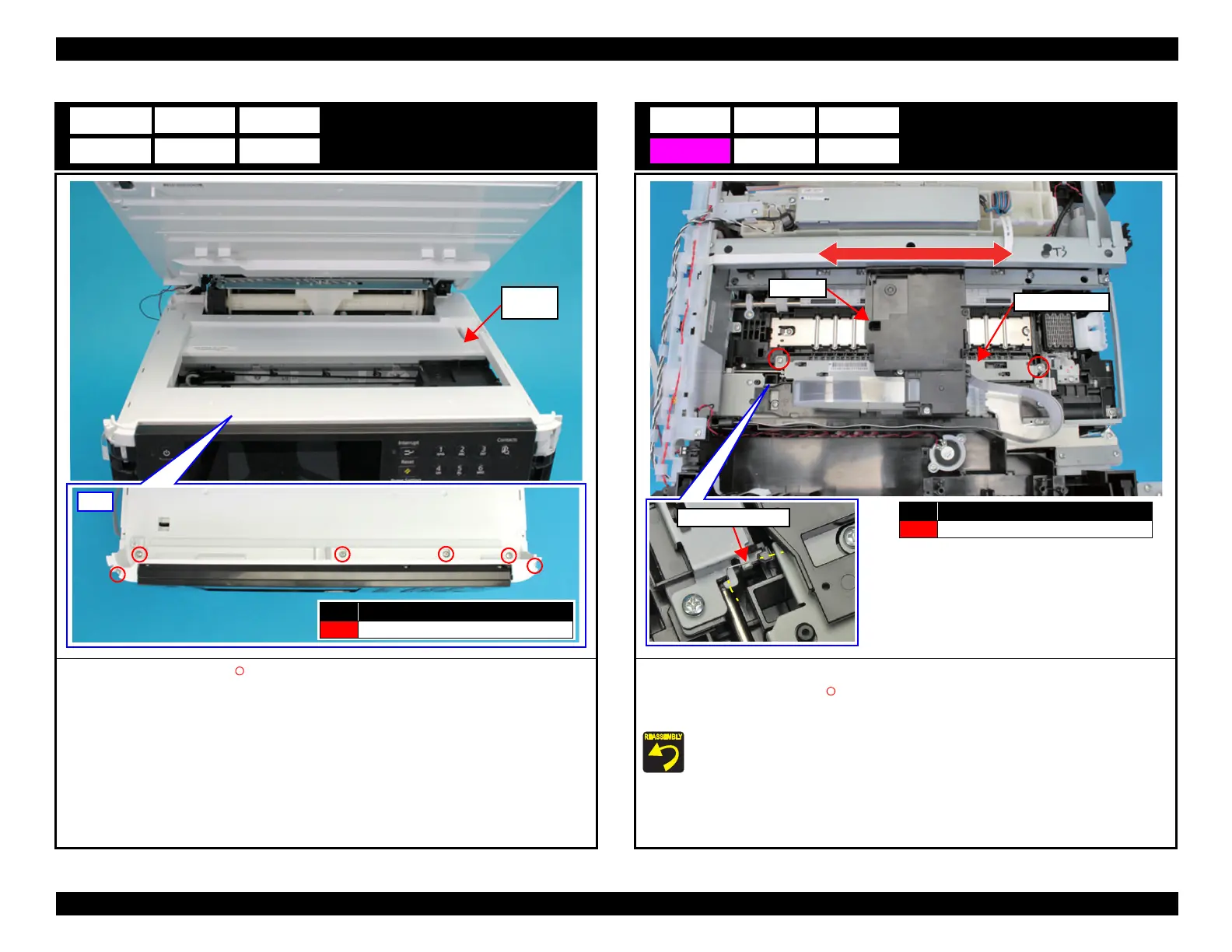

Housing Upper
1. Remove the six screws (S4: ), then remove the Housing Upper.
D6 E6
F6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Housing
Upper
Star Wheel Unit
1. Remove the Grounding Spring.
2. Remove the two screws (S16: ) that secure the Star Wheel Unit.
3. Remove the Star Wheel Unit while sliding the CR Unit left and right.
Attach the Grounding Spring as shown above.
D7
Star Wheel Unit
No. Screw Type
S16
C.B.P-TITE (S-P1)SCREW,3X12,F/ZN-3C
Grounding Spring
CR Unit
