EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 457
Confidential

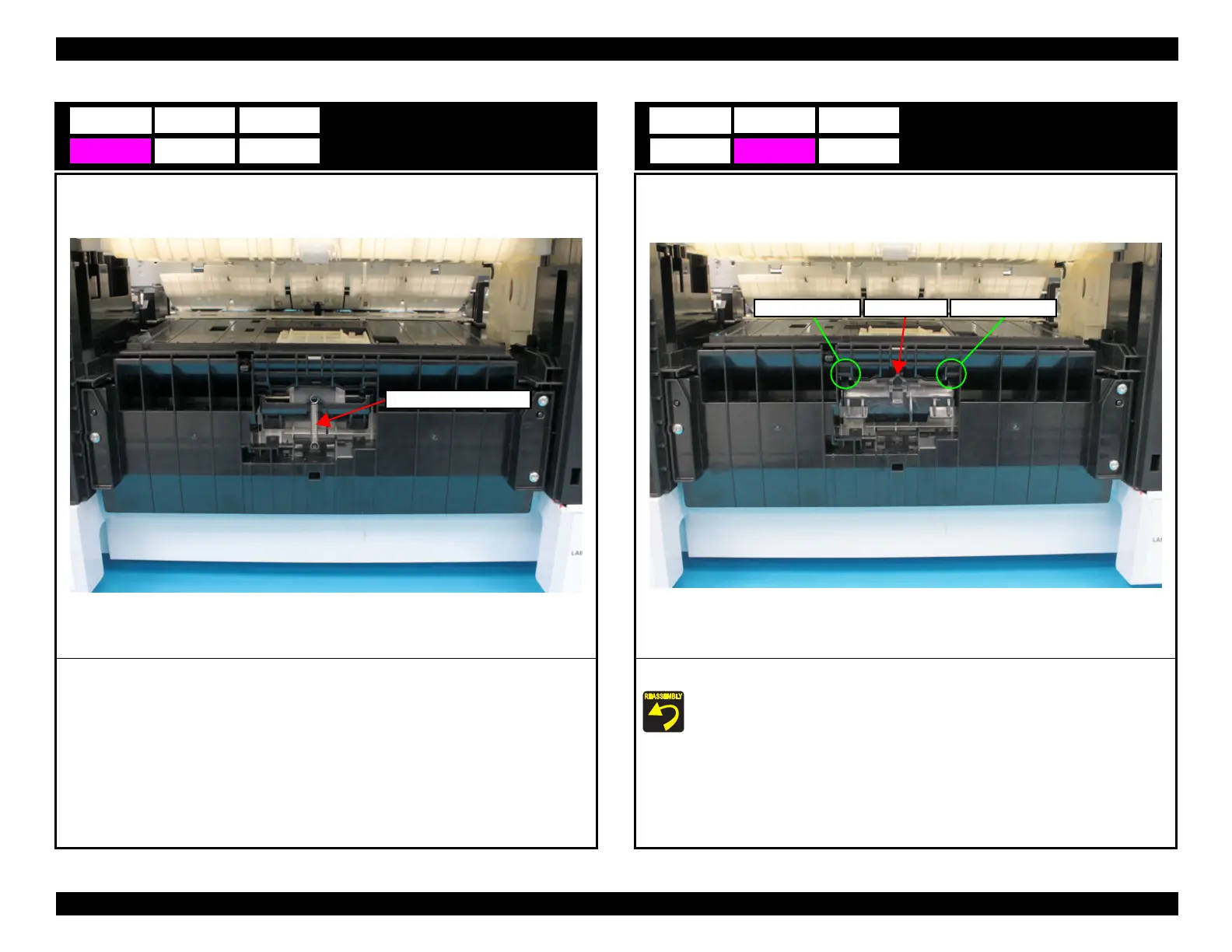

Retard Extension Spring
1. Remove the Retard Extension Spring.
D3 E3
Retard Extension Spring
Retard Roller
1. Remove the Retard Roller.
Attach the two bearings of the Retard Roller to the shafts of the Frame Base.
E4
Retard Roller Shaft and bearingShaft and bearing
