EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 474
Confidential

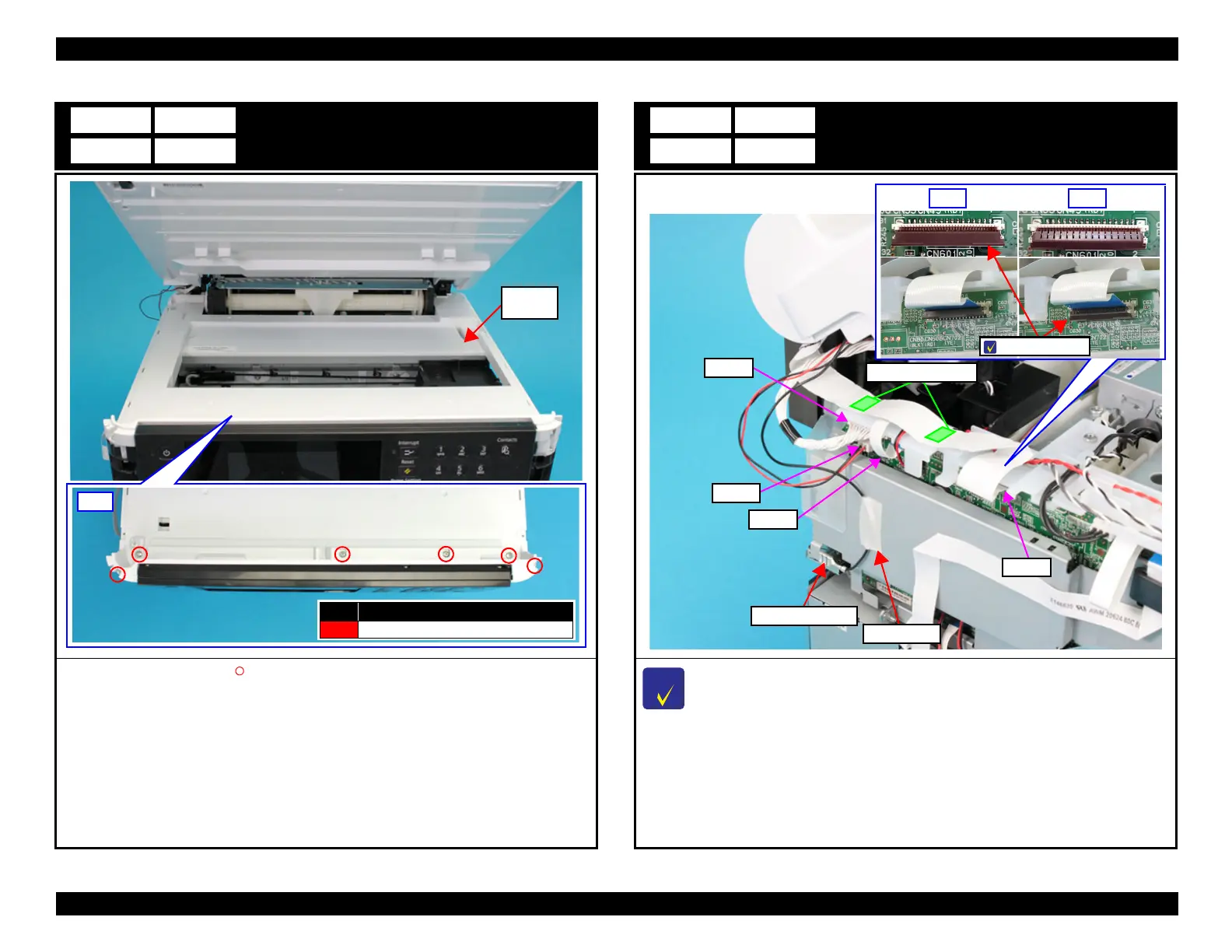

Housing Upper
1. Remove the six screws (S4: ), then remove the Housing Upper.
A6 B6
C6 D6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Housing
Upper
ADF/SCN Unit
C H E C K
P O I N T
When disconnecting the CISM FFC (CN601) from this connector, make sure to
unlock the connector lock beforehand.
1. Disconnect the cables and FFCs from following connectors on the Main Board.
2. Peel off the acetate tape, then remove the grounding cable.
A7 B7
C7 D7
Grounding cable
Acetate tape
Double-sided tape
CN801
CN612
CN606
CN601
Open Close
Connector Lock
•CN601 • CN606 •CN612 • CN801

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
