EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 479
Confidential

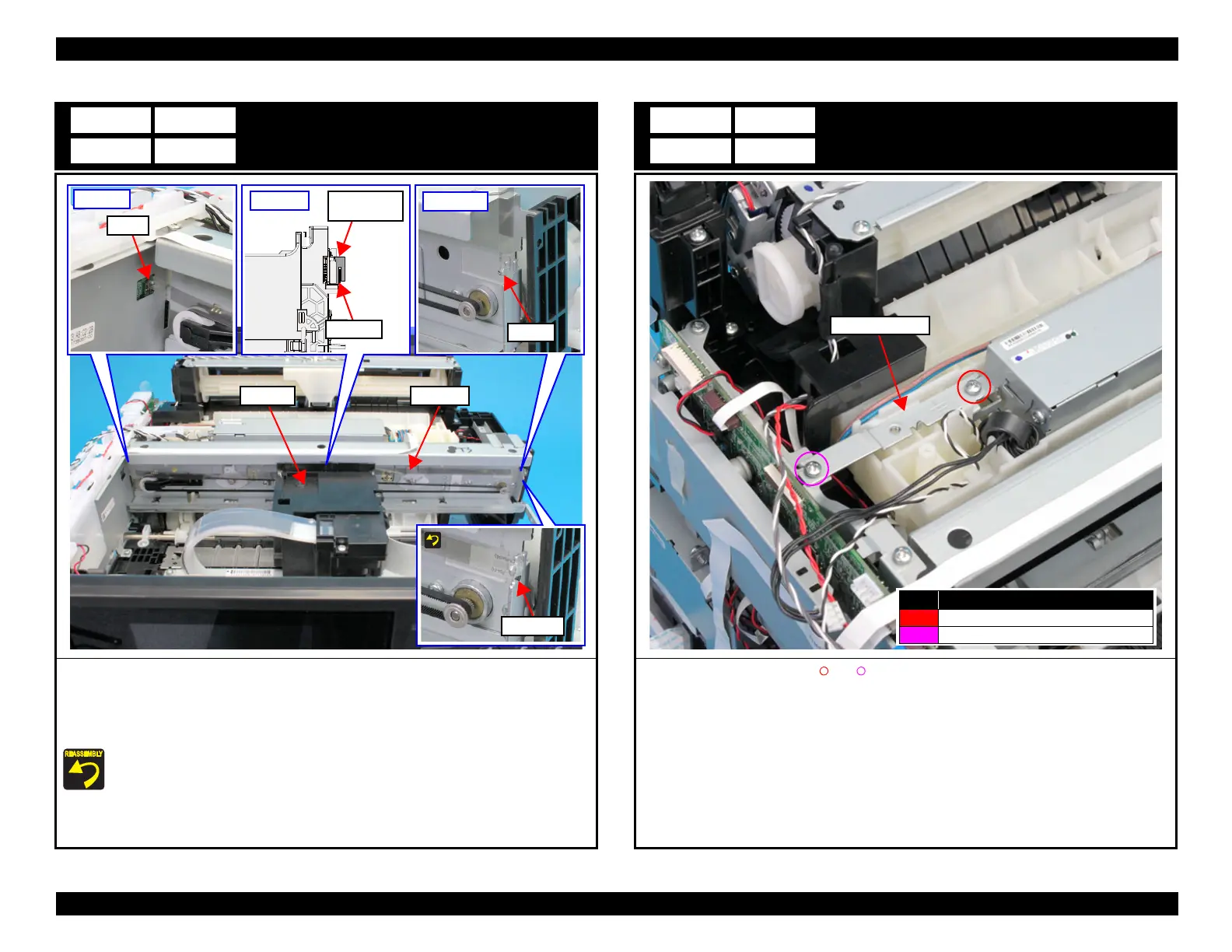

CR Scale
1. At the full side, remove the CR Scale from hook on the frame.
2. Pull the CR Scale out from the CR Encoder Sensor.
3. At the home side, turn the CR Scale 90 degrees upward, and remove it from the hook on the
frame.
Attach the CR Scale with the marking on the bottom right corner.
A13 B13
C13 D13
Hook
Full side
CR Encoder
Sensor
Side view
CR Scale
Hook
Home side
CR Scale
CR Unit
Marking
PS Ground Plate
1. Remove the two screws (S4: , S5: ), then remove the PS Ground Plate.
A14 B14
C14 D14
PS Ground Plate
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
