Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 488
Confidential

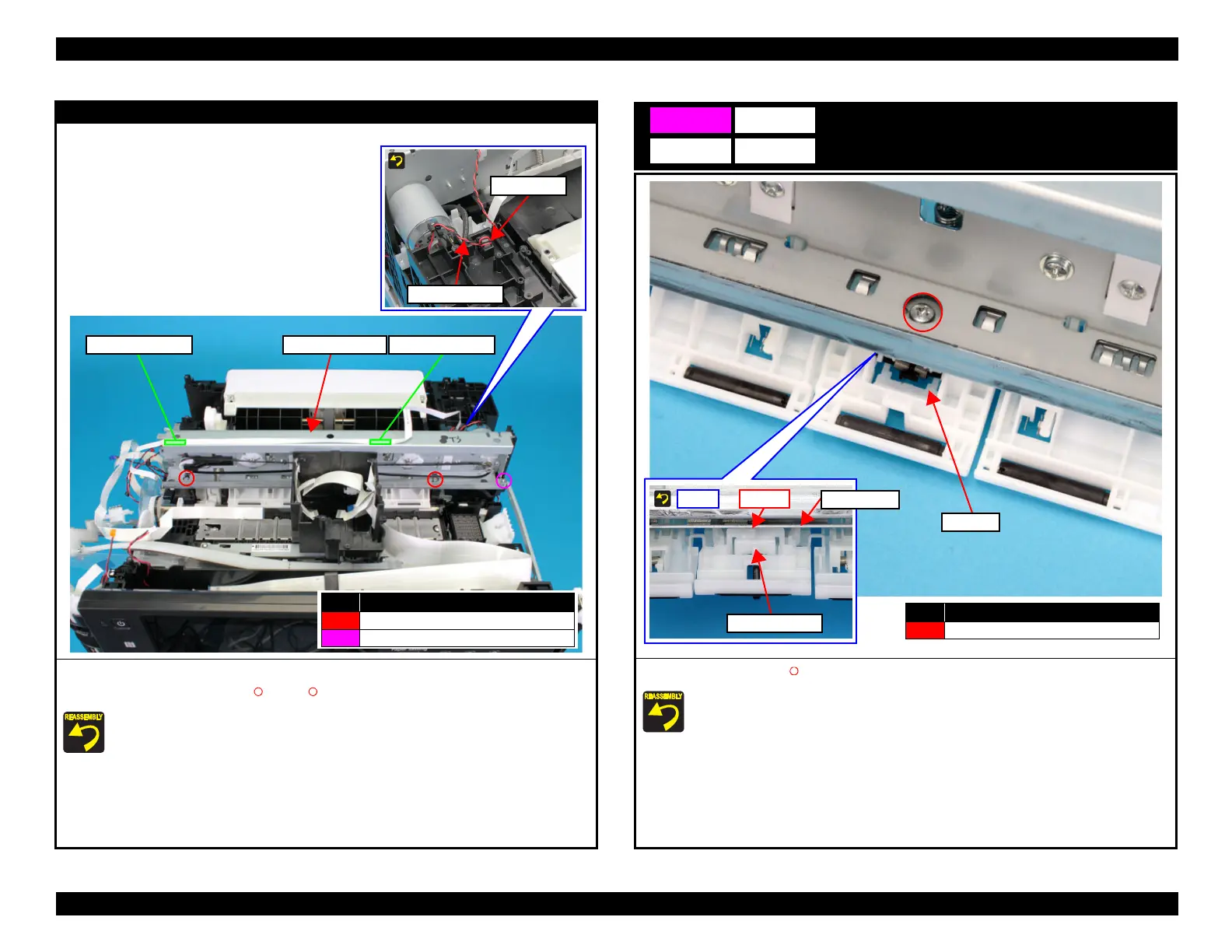

Main Frame Assy
4. Peel off the CSIC FFC from the frame.
5. Remove the three screws (S14: x2, S5: x1), then remove the Main Frame Assy.
 Fix CSIC FFC on the frame at the location shown in the figure above by using double-sided
tape at two locations.
 Route the CR Motor Cable with reference to the figure above.
No. Screw Type
S14
C.B.P-TITE-SCREW-3X16-FZN3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
CR motor cable
Ferrite core
Main Frame Assy
Double-sided tapeDouble-sided tape
PE Assy
1. Remove the screw (S5: ), and remove the PE Assy from the Main Frame.
Confirm there are no gaps between the Sensor Holder and the Main Frame.
A22
PE Assy
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Sensor Holder
Front
No gap
Main Frame

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
