Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 52
Confidential
 Intermediate feeding mechanism
This mechanism feeds the paper fed from the Cassette Assy to the paper feed
mechanism.
The intermediate feeding mechanism is driven by the ASF Motor.
The Middle Roller always rotates in a set direction (paper feed direction)
because of the Planet Gear, regardless of the ASF motor rotational direction.

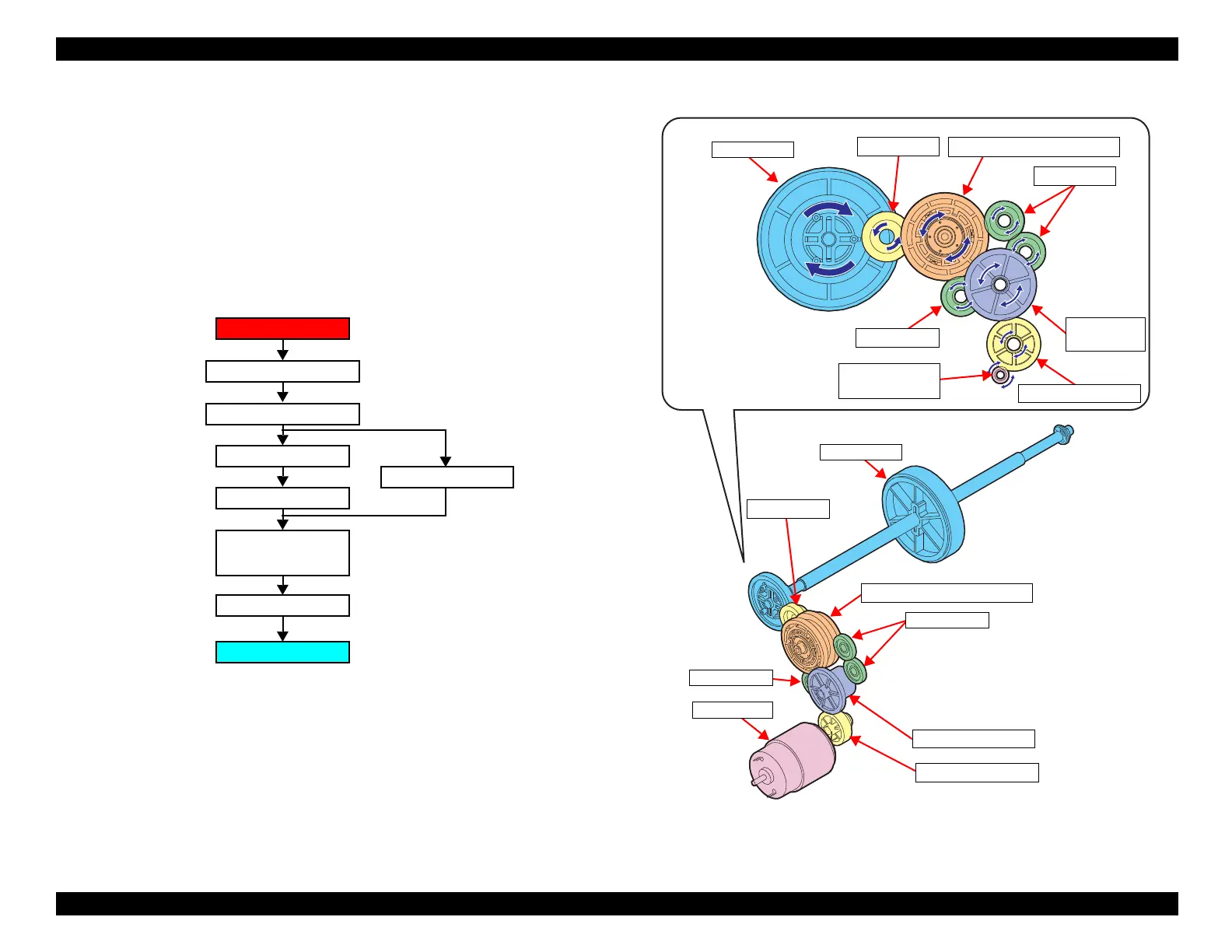

Figure 3-31. Drive path
Duplex Gear
Middle Roller
Planet Gear
ASF Motor
Compound Gear A
Planet Gear
Planet Gear
Compound Gear
35.5, 26.4
Compound Gear C
Middle Roller
Duplex Gear
ASF Motor
Pinion Gear of
ASF Motor
Planet Gear
Planet Gear
Compound Gear 35.5, 26.4
Compound Gear C
Compound Gear A
Compound Gear A
Compound
Gear C
Planet Gear
Planet Gear
Middle Roller
Duplex Gear
Compound Gear 35.5, 26.4

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
