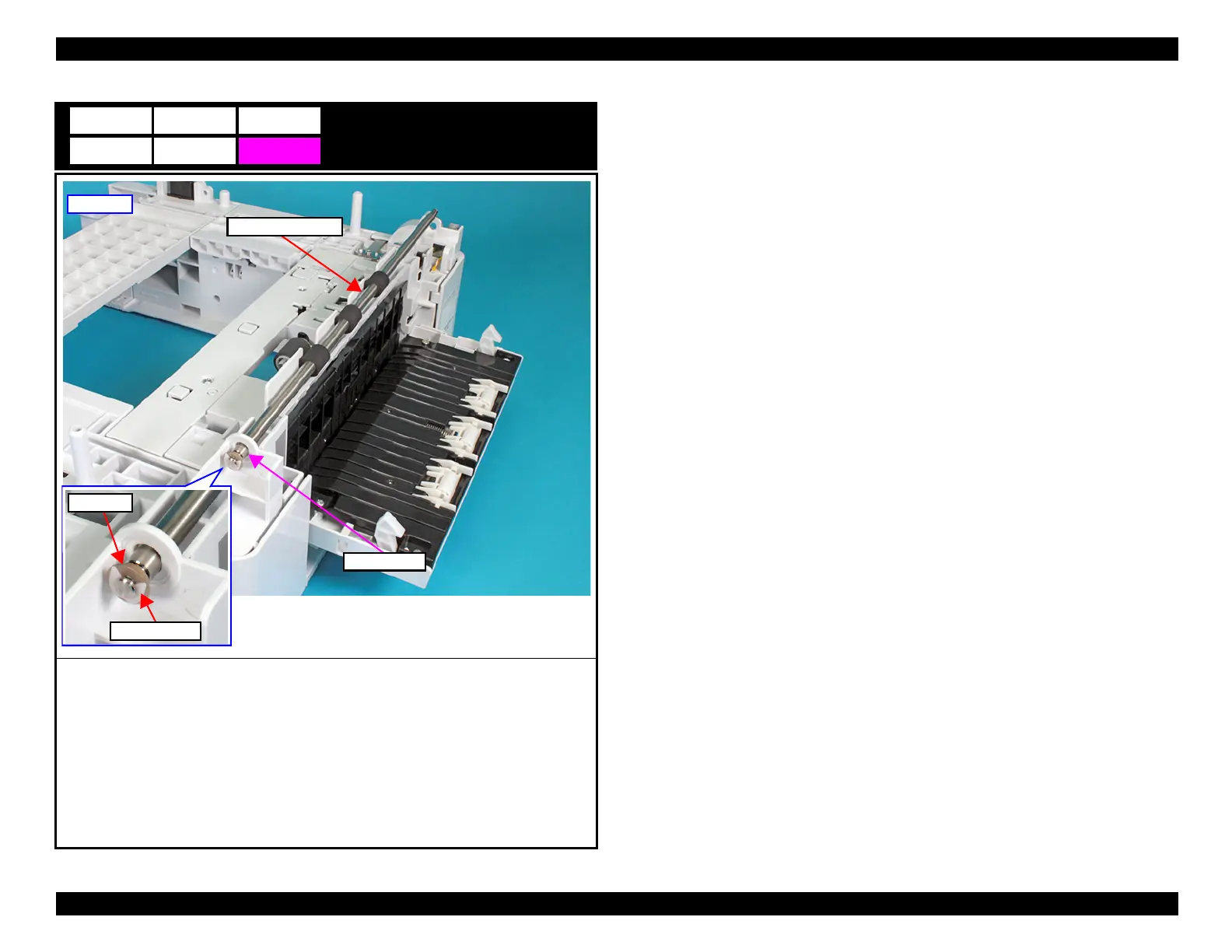

Vertical Feed Roller
1. Remove the E-ring (plastic), then remove the Bearing B from the Vertical Feed Roller.
2. Remove the Vertical Feed Roller from the hole of the frame, then remove it.
F7
Vertical Feed Roller
Hole of frame
Right rear
Bearing B
E-ring (plastic)
