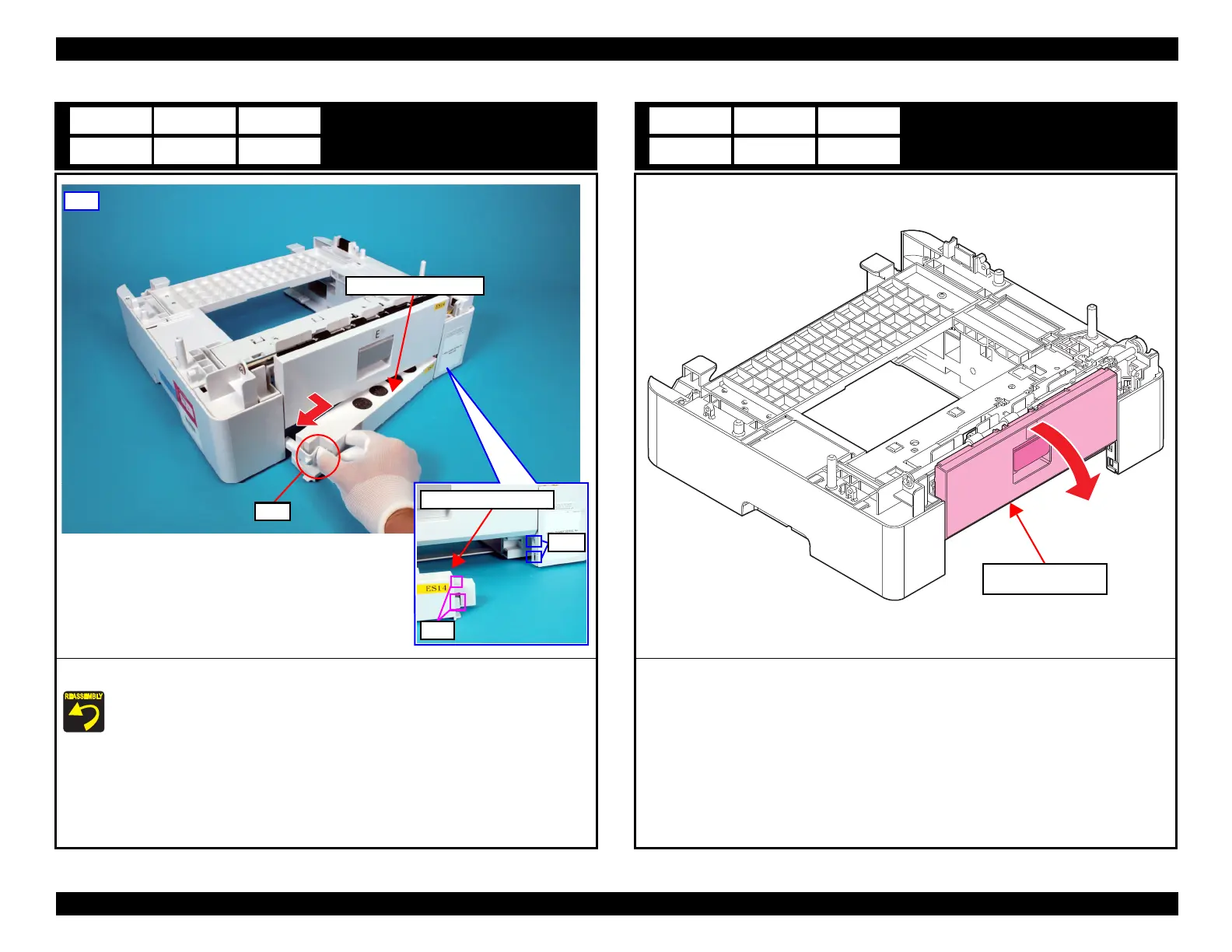

Rear Lower Cover Assy
1. Pick the tab, and remove the Rear Lower Cover Assy in the direction of the arrow.
When installing the Rear Lower Cover Assy, attach the two ribs of the Rear Lower
Cover Assy to the holes of the frame.
A3 B3
D3
C3
Rear
Rear Lower Cover Assy
Tab
Holes
Ribs
Rear Lower Cover Assy
Optional Paper Cassette Rear Cover
1. Open the Optional Paper Cassette Rear Cover.
A4 B4
D4
C4
Optional Paper
Cassette Rear Cover
