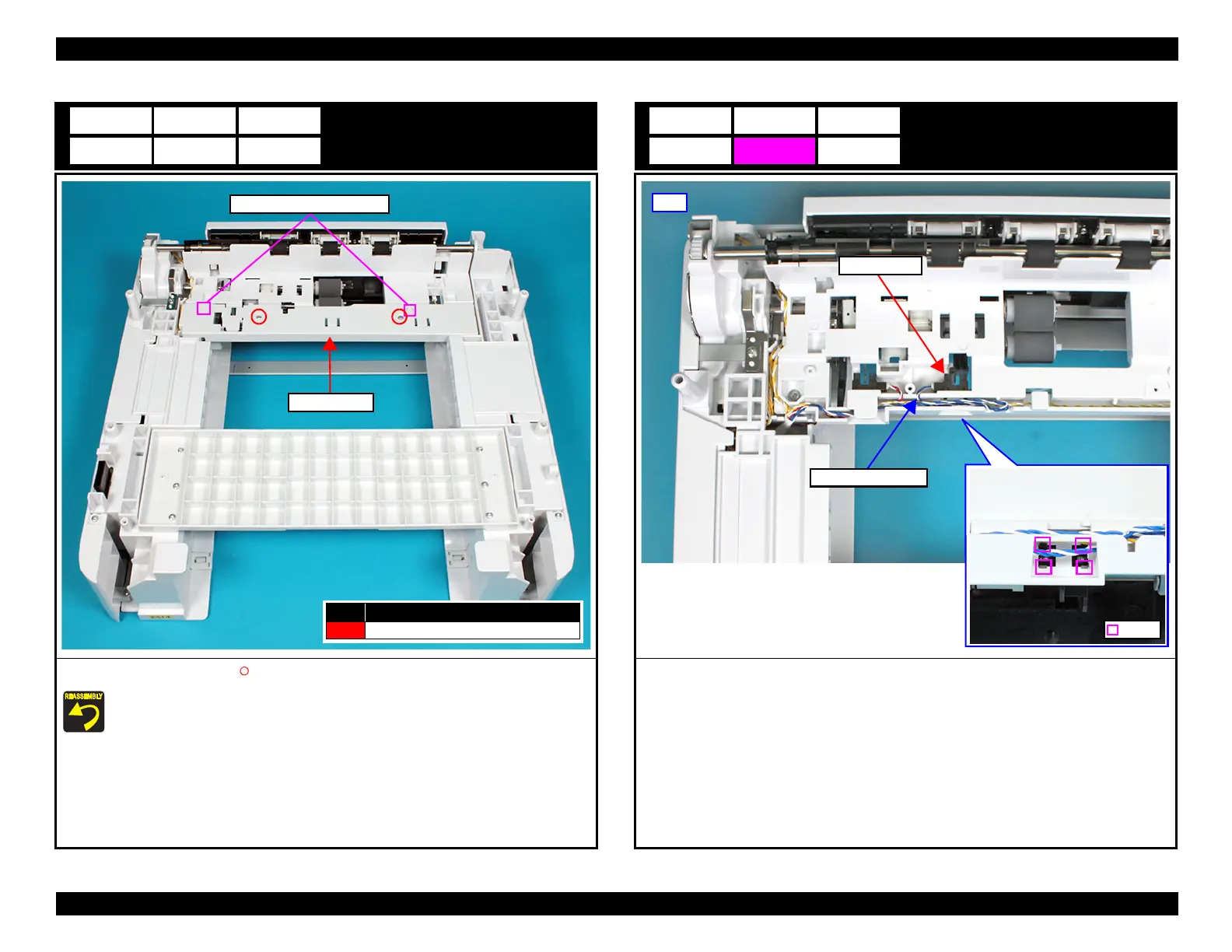

Middle Frame
1. Remove the two screws (S4: ), then remove the Middle Frame.
When installing the Middle Frame, attach the two dowels of the frame to the two
positioning holes of the Middle Frame.
E1
Middle Frame
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Dowels and positioning holes
Photo Sensor
1. Disengage four hooks using precision screw driver or similar tool, then remove the Photo
Sensor from frame.
2. Disconnect the photo sensor cable from the connector, then remove the Photo Sensor.
E2
Hook
Photo Sensor
Photo sensor cable
