EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Configuration and operating principles Operating principles 55
Confidential
Paper Feed Mechanism
This mechanism feeds the paper fed from the intermediate feeding mechanism
and ejects it.
The paper feed mechanism is driven by the PF Motor's drive force. The drive
force of the PF Motor is transmitted by the PF Timing Belt to the PF Roller and
EJ roller to perform paper feeding before/after printing.

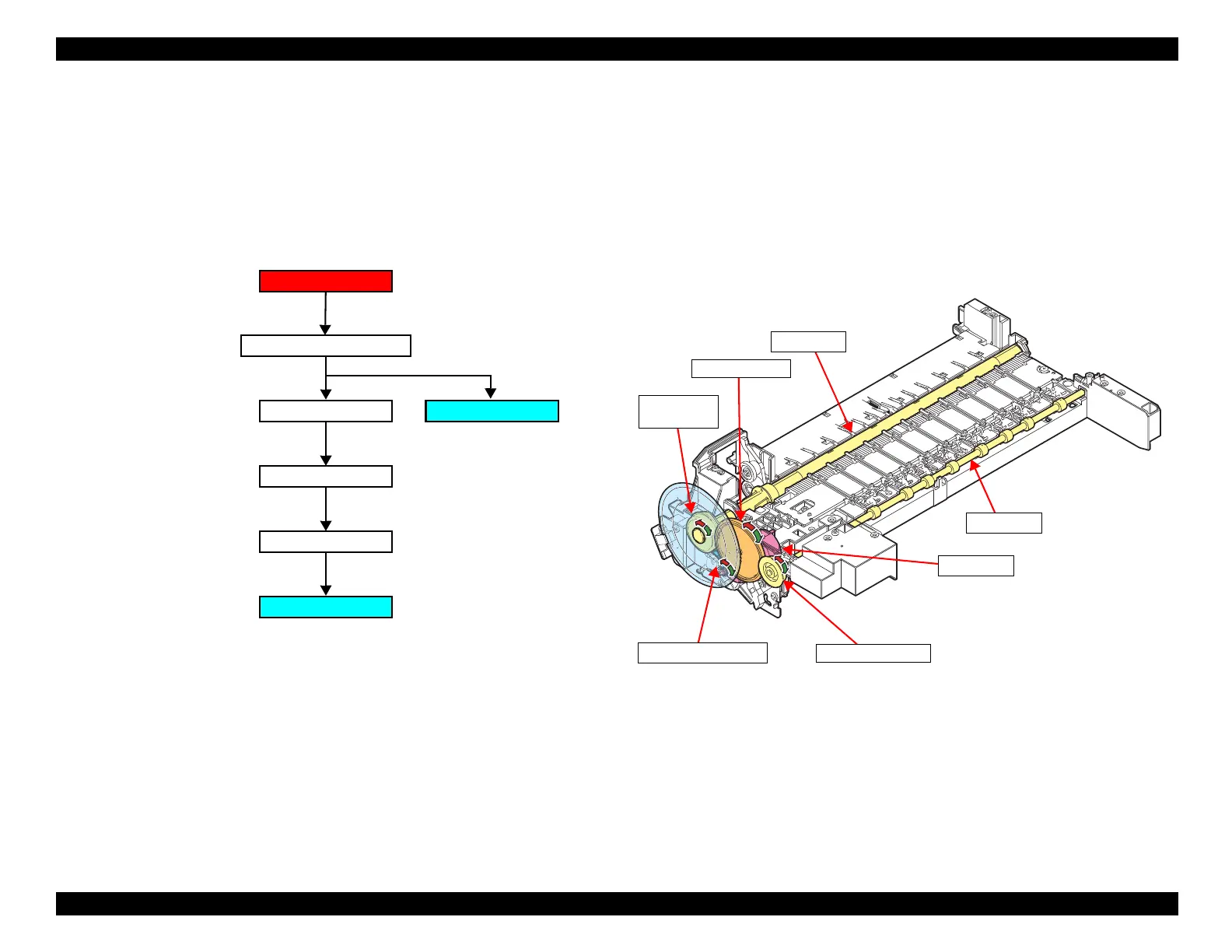

Figure 3-34. Drive path
PF Roller
PF Motor
PF Timing Belt
Spur Gear 28.8
Spur Gear 49.32
Spur Gear 21.1
EJ Roller
EJ Roller
Spur Gear
28.8
PF Timing Belt
Spur Gear 49.32
Spur Gear 21.1
PF Roller
PF Motor

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
