Adjustment Adjustment and Inspection Details 570
Confidential
5. Check the adjustment pattern, and forecast the adjustment value when the gap
between the lines is equal.

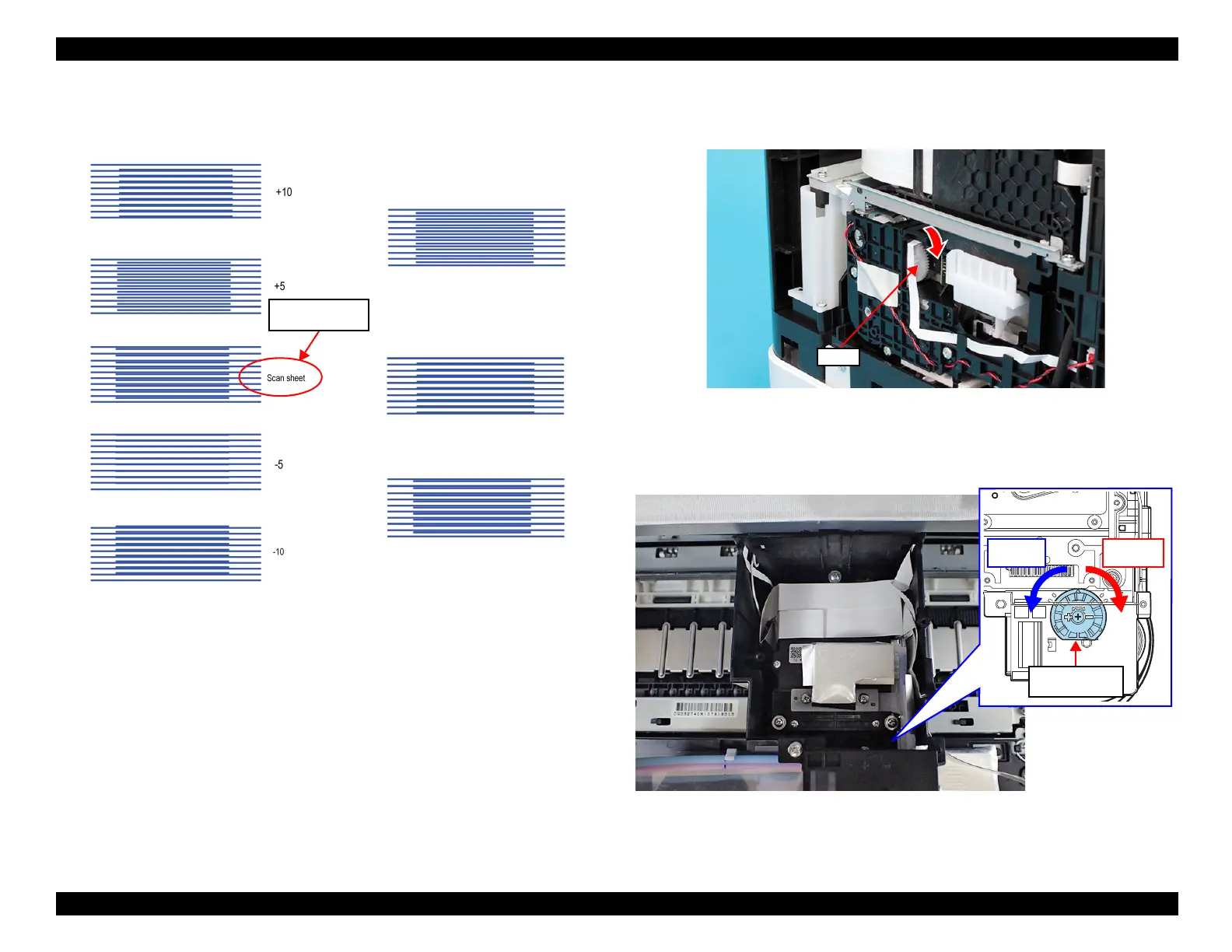

Figure 7-19. Head angular mecha adjustment (1)
6. Turn the printer off, and turn the Ink System gear by hand as shown below to
release the CR lock, moving the Carriage to the center position.
Figure 7-20. Releasing the CR lock
7. Turn the screws (×3) holding the Print Head counter clockwise by 90° to loosen,
and move the Carriage Unit's Head Angular Adjustment dial in accordance with
the forecast adjustment value from Step 5.
Figure 7-21. Head angular mecha adjustment (2)
Present adjusted
value
<OK>
<NG>
Gear
Direction
of “+”
Direction
of “-”
Head Angular
Adjustment dial
