8�2 AISG Bus (Current, Voltage)
① Enables/disables the AISG Bus Power
② Shows the current of the connected ALD
③ Shows the voltage of the connected ALD
④ Shows the power of the connected ALD
⑤ Press save to save the AISG Bus Power state
⑥ Go back
The submenu AISG Bus shows how much current, voltage, and power the device connected to the ALD consumes�

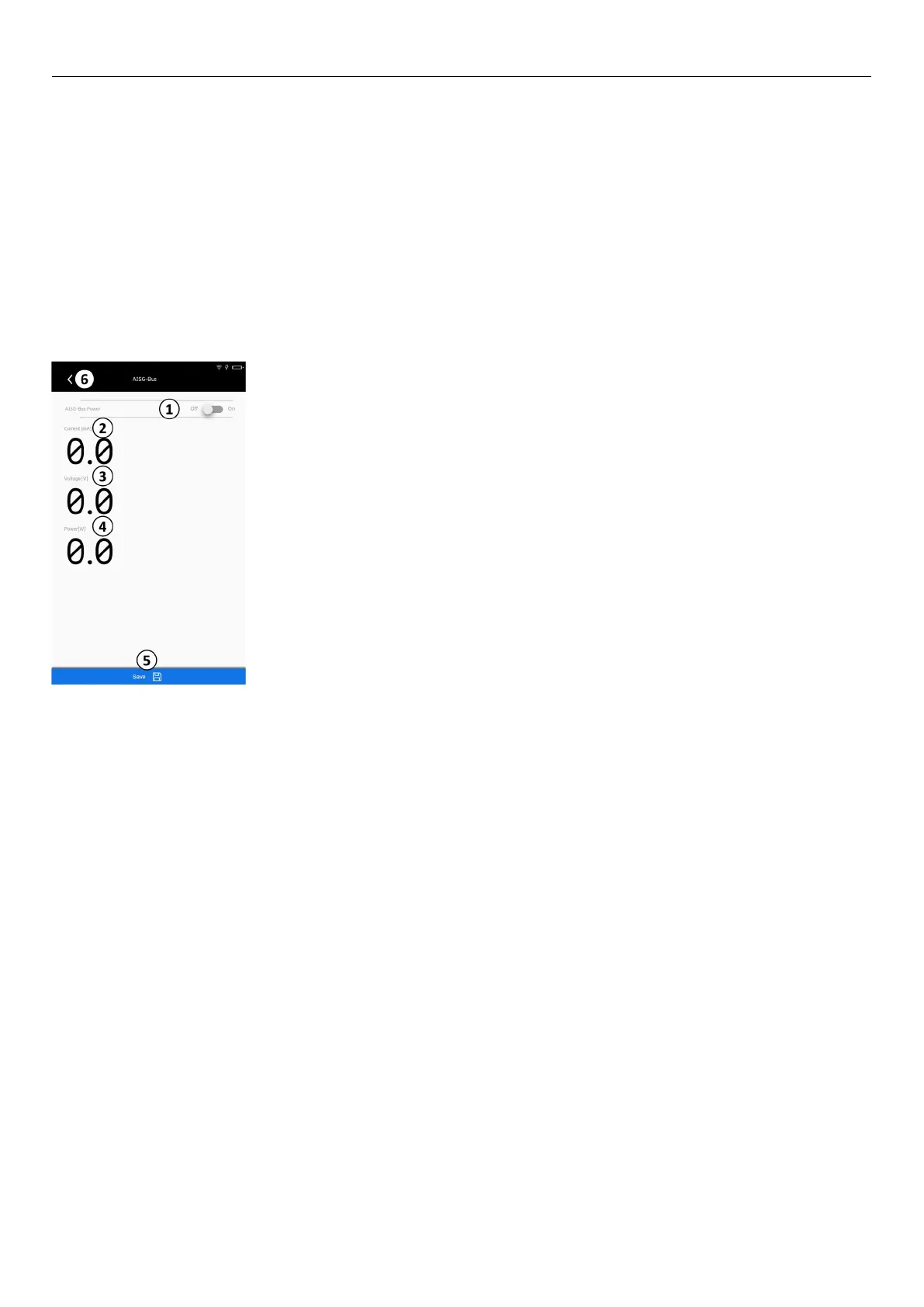

Fig� 18: AISG Bus (Current, voltage)
