Ericsson | Antenna Line Congurator
69
10�3 Configure the Site Sharing Adapter Settings
1� Tap ④ in Fig� 102 to open the site sharing adapter
settings�
The following page is shown:
① Opens the Password Options, see section 10�3�1
② Changes the controller mode between one controller
and all controllers
③ Shows if the password has been activated in the
Password Options
• The lock is open if no password has been set�
• The lock is closed if a password has been set�
④ Shows the model number of the connected FlexRET
⑤ List of base stations; the number of base stations
depends on the type of site sharing adapter
⑥ Selects the antenna array
Tap a box to change the antenna array setting:
• X = array is selected (full access)
• R = read only (shows only the array; no changes can
be done)
• <blank> = array is not selected (no access)
⑦ Selects the AISG protocol
Tap a box to change the AISG protocol and between
MultiMode and SingleMode�
⑧ Saves changes
⑨ Closes the Controller Mode and returns to the previous
page

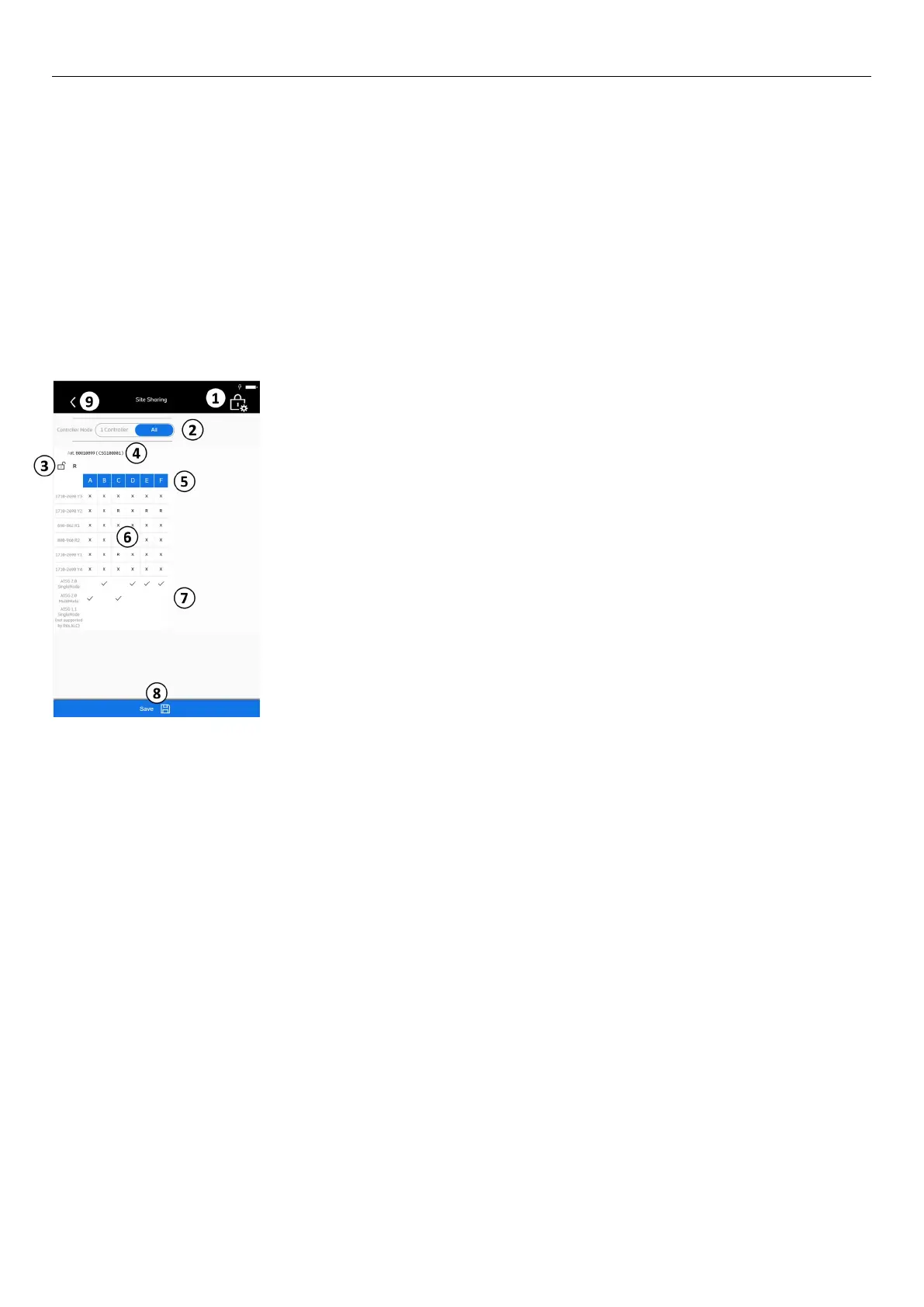

Fig� 105: Sharing: Operating the site sharing adapter settings
