Ericsson | Antenna Line Congurator
64
9�9 Operate the GLS
① Opens the list with the individual subunits, see fig 95
② Generates ALD reports, see 9�3
③ Selects the AISG protocol scanning options, see 9�1�1
① Shows the list of the subunits
② Opens the subunit properties, see Showing Properties
of the GLS Subunits, see 9�9�2
③ Opens the GLS properties, see 9�9�1
④ Selects report types and generates reports, see 9�3
⑤ Selects the AISG scanning options�

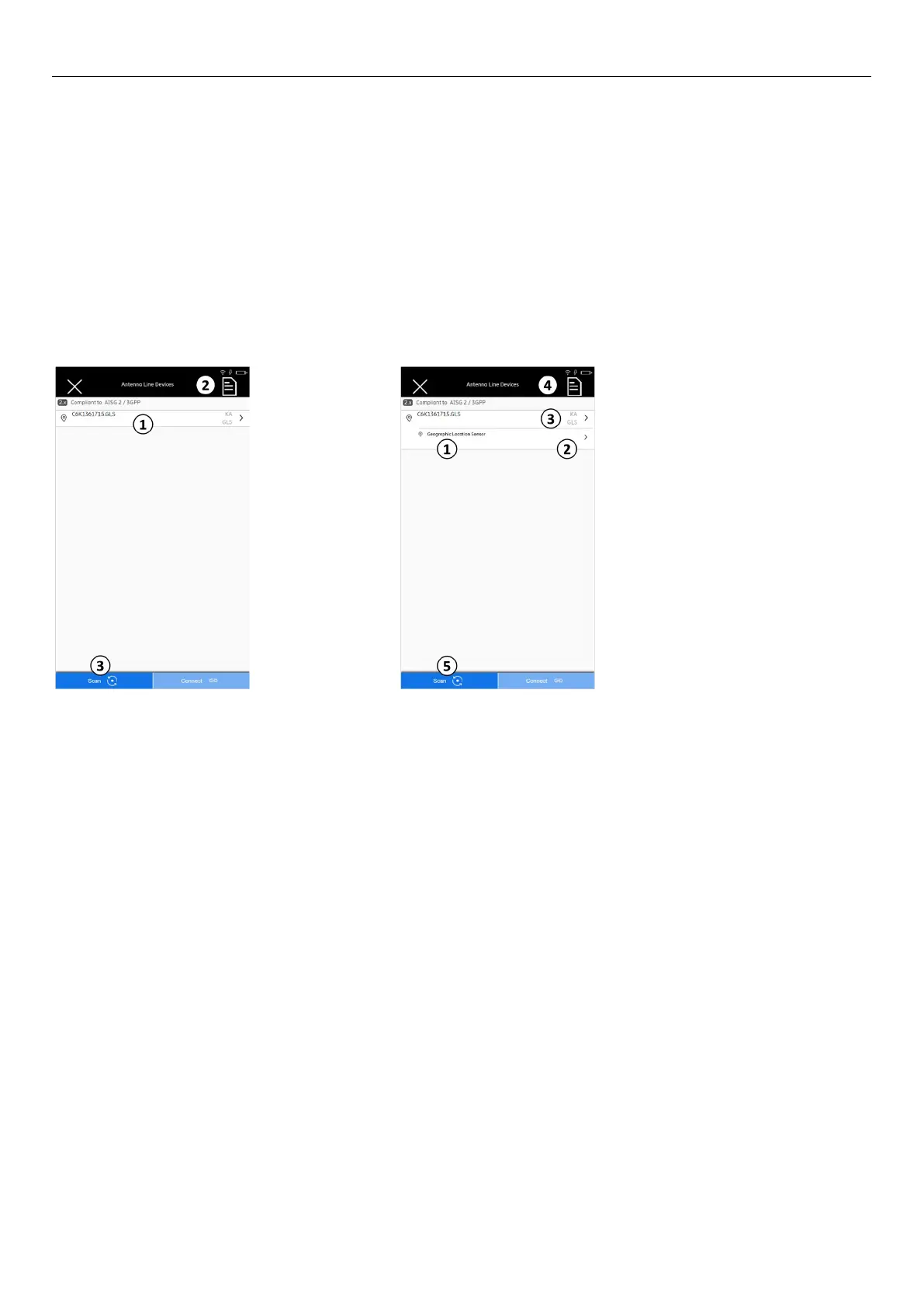

Fig� 94: Devices: GLS connected Fig� 95: Devices: GLS connected with subunit
The ALC has found the ALD and the ALD has been
connected to the ALC, see 9�1 and 9�2
• The following is displayed: 1� Tap ① in Fig�94 to open the list with the subunits�
The following page appears:
