9�8 Operate the ASD
① Opens the list with the individual subunit� See next Fig�
② Generates ALD reports, see 9�3
③ Selects the AISG protocol scanning options
① Shows the list of the subunits
② Opens the subunit properties, see Showing Properties
of the ASD Subunits, see 9�8�2
③ Opens the ASD properties, see 9�8�1
④ Selects report types and generates reports, see 9�3
⑤ Selects the AISG scanning options, see 9�1�1

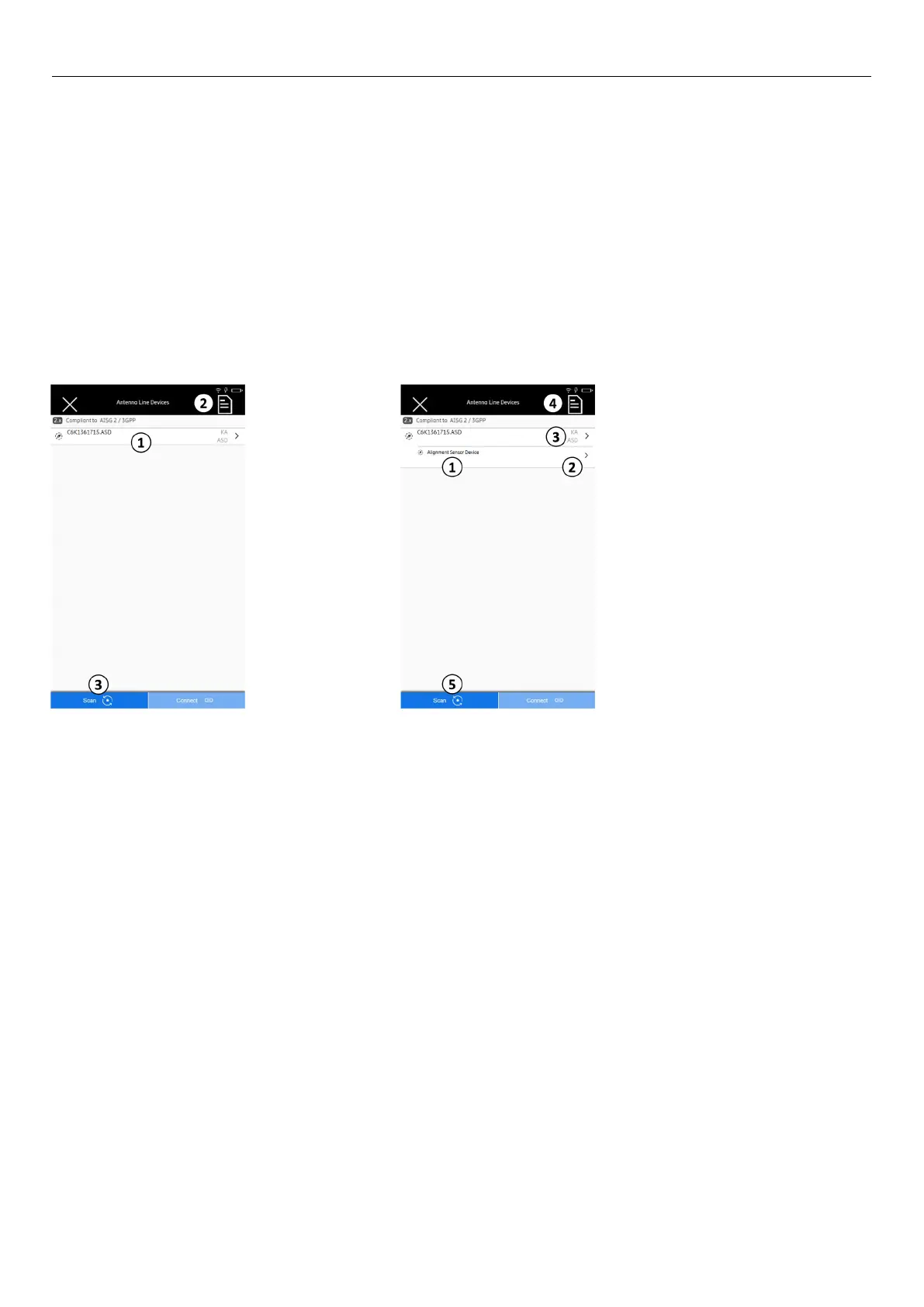

Fig� 86: Devices: ASD connected Fig� 87: Devices: ASD connected with subunit
The ALC has found the ALD and the ALD has been
connected to the ALC, see 9�1 and 9�2
• The following is displayed: 1� Tap ① in Fig� 86 to open the list with the subunits�
The following page appears:
