9�7�2 Overview RAE Subunit Settings
① Shows the subunit properties The values of the
following fields are shown and cannot be changed:
• RX Frequency Band
• TX Frequency Band
② Opens the settings of the subunit, see Fig 82�
① Opens the settings of the subunit, see 9�7�2�2
② Sends a Weighting Factor File or Pattern File to the
RAE see section 9�7�2�1
③ Gets a Weighting Factor File from an RAE see section
9�7�2�1
④ Resets the Weighting Factor File on the RAE
⑤ Changes Location and Tilt Data of the RAE
⑥ Save changes
1� Tap
② in Fig� 78 to open the subunit properties� The
following page is shown:
1� Tap ② in Fig� 81 to open the subunit properties� The
following page is shown:

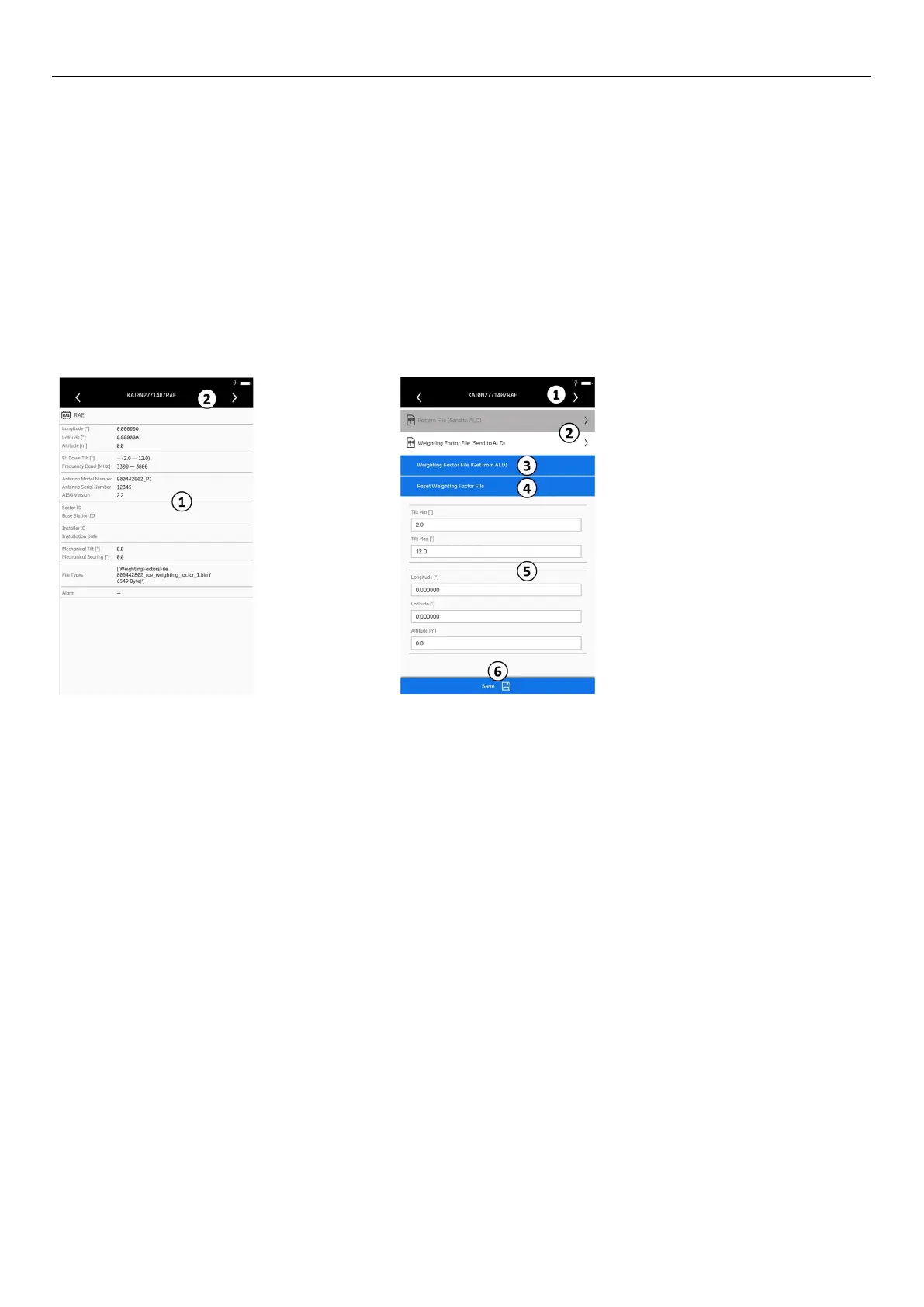

Fig� 81: Devices: Properties of the RAE subunit
Fig� 82: Devices: Changing the RAE subunit
