• For an incoming SPTS VBR Multicast, set the Transport Stream Mode to VBR.
This will automatically disable Input FEC Control, which is not supported for
VBR input. Set the Multicast IP Address to the incoming stream address and
set the Source IP Address to 0.0.0.0.

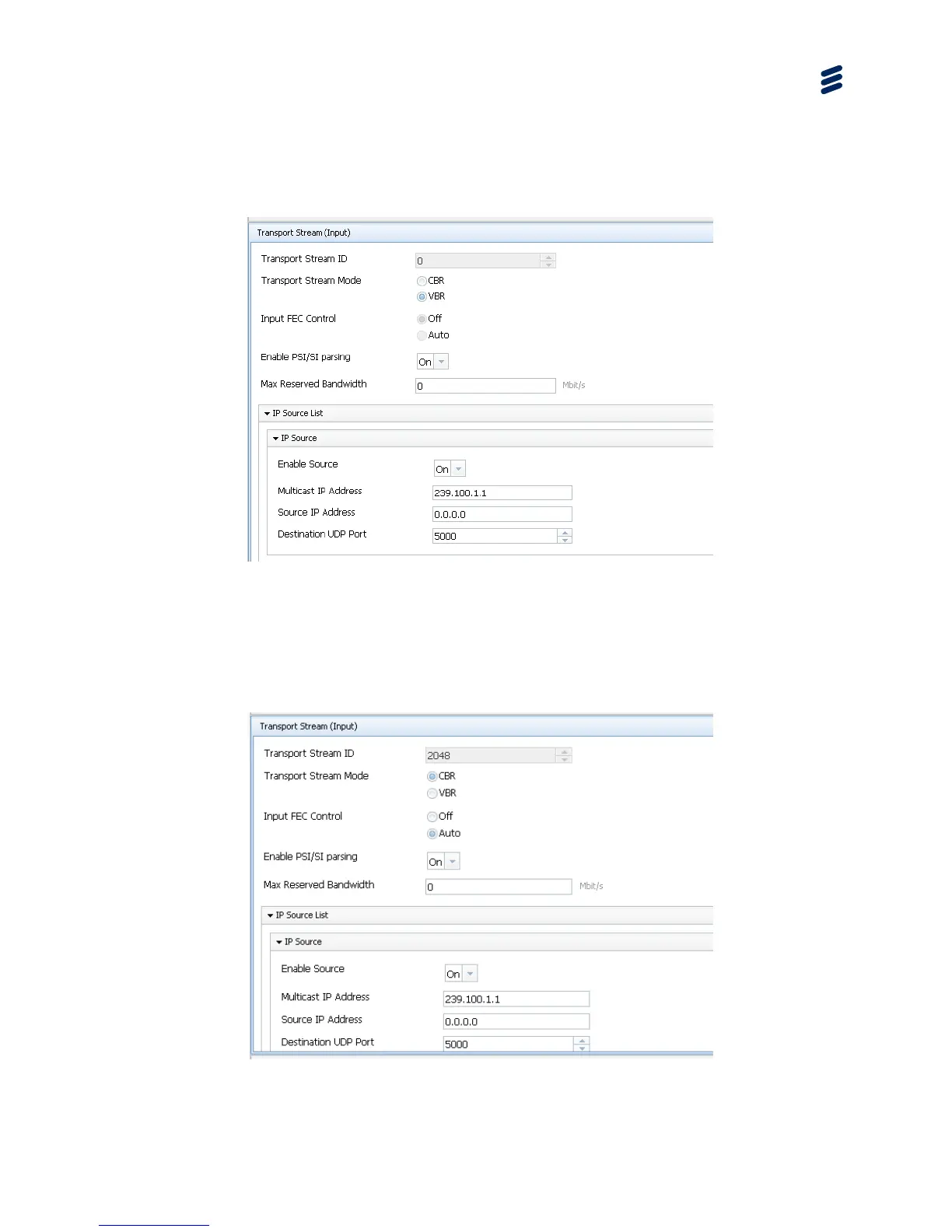

Figure 3.19 Setting Transport Stream Mode to VBR (SPTS Multicast)
• For an incoming CBR Multicast, which may be SPTS or MPTS, set the
Transport Stream Mode to CBR. Set the Input FEC Mode to Off if not
expecting FEC on the incoming stream, or set the Input FEC Mode to Auto if
FEC may be expected on the incoming stream. Set the Multicast IP Address to
the incoming stream address and set the Source IP Address to 0.0.0.0.
Figure 3.20 Setting Transport Stream Mode to CBR (SPTS or MPTS Multicast)
