• For an incoming SPTS VBR Unicast stream, set the Transport Stream Mode to
VBR. This will automatically disable Input FEC Control, which is not supported
for VBR input. Set the Source IP Address to the incoming stream address and
set the Multicast IP Address to 0.0.0.0.

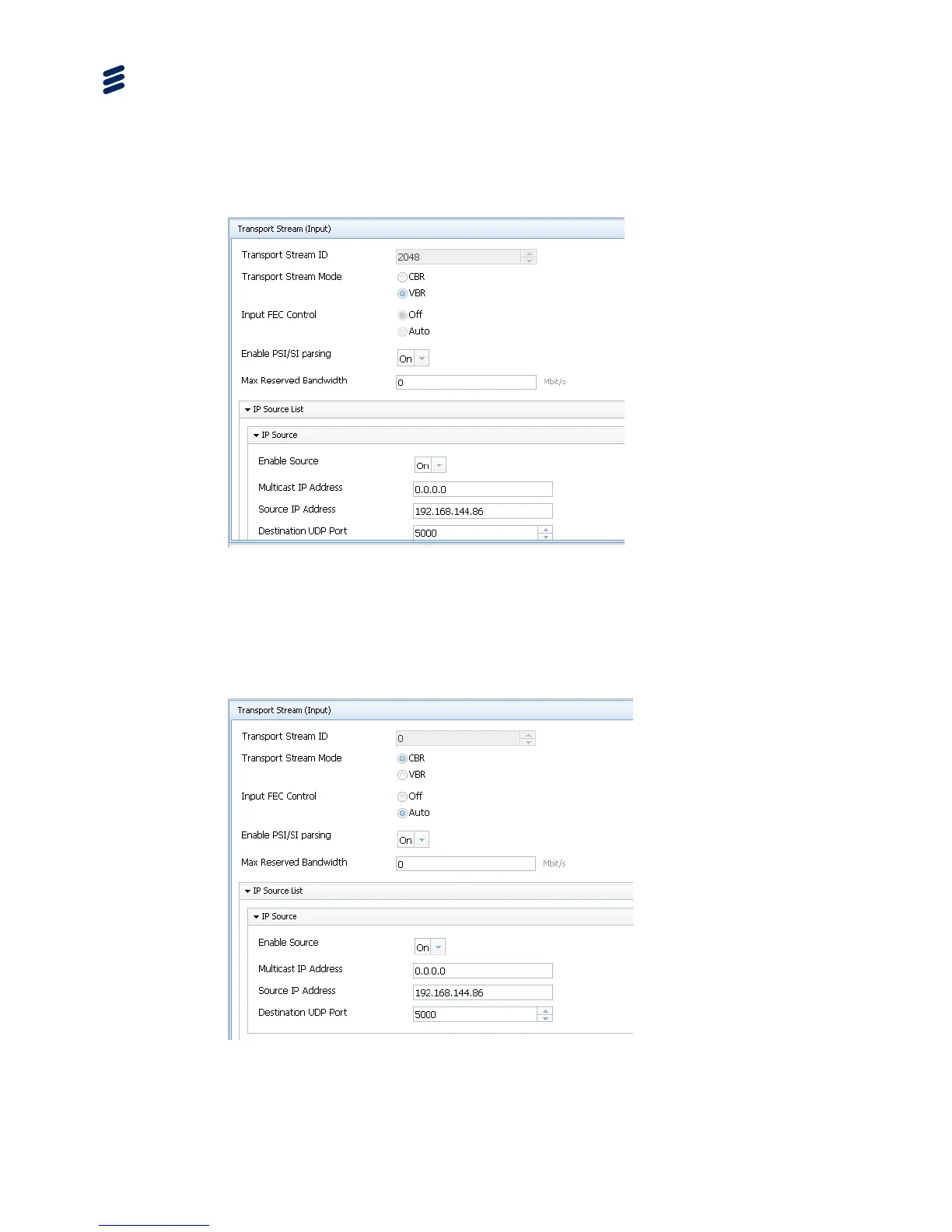

Figure 3.21 Setting Transport Stream Mode to VBR (SPTS Unicast)
• For an incoming CBR Unicast, which may be SPTS or MPTS, set the Transport
Stream Mode to CBR. Set the Input FEC Mode to Off if not expecting FEC on
the incoming stream, or set the Input FEC Mode to Auto if FEC may be
expected on the incoming stream. Set the Source IP Address to the incoming
stream address and set the Multicast IP Address to 0.0.0.0.
Figure 3.22 Setting Transport Stream Mode to CBR (SPTS or MPTS Unicast)
