Getting Started with EPICenter
EPICenter Concepts and Solutions Guide
52

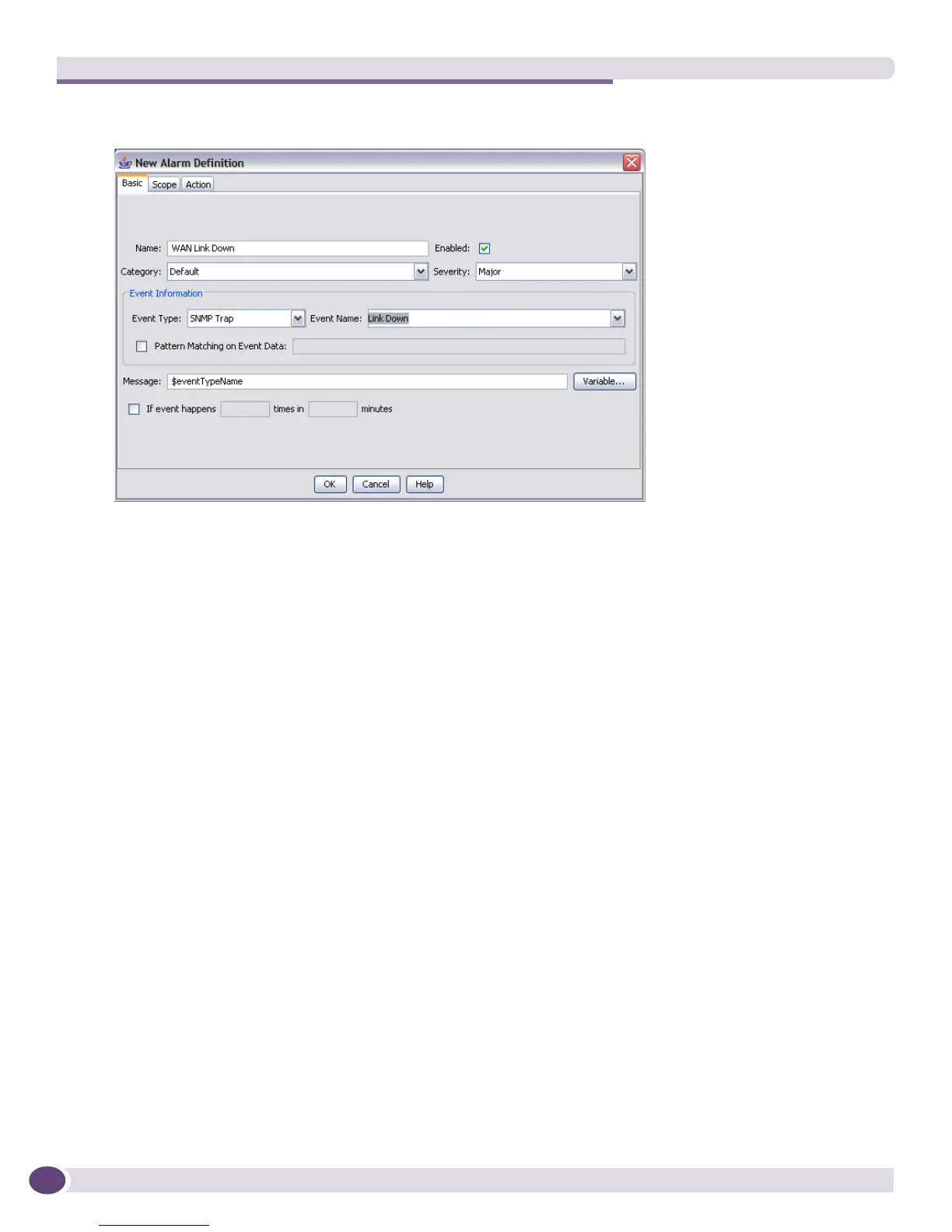

Figure 19: The Basic tab of the New Alarm Definition window
a Type a name for the alarm (for example, WAN Link Down) in the Name field.
b Make sure the Enabled checkbox is checked.
c Select a severity level in the Severity field
d Select a category (e.g. “Default”) in the Category field.
e Select “SNMP Trap” in the Event Type field.
f Select “Link Down” in the Event Name field.
The information in the Basic tab should look as shown in Figure 19.
2 Click the Scope tab, and do the following:
a Make sure the All devices and ports checkbox is not checked.
b Select “Port” in the Source Type field.
c Select the device from the Device list.
d Select the port from the ifIndex list.
e Click the Add button to add the device and port to the Selection list.
The information in the Scope tab should look similar to what is shown in Figure 20.
